Description

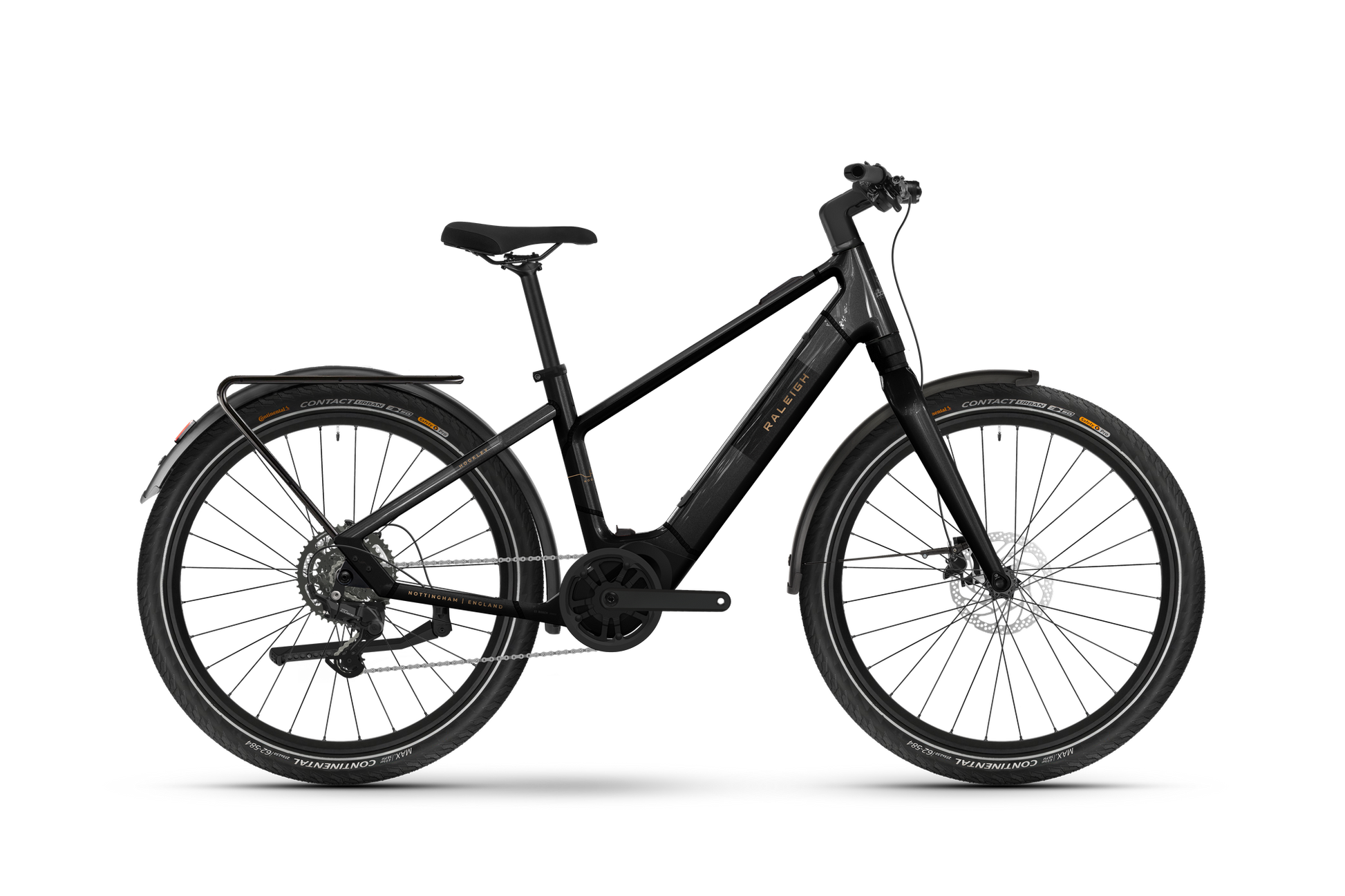

Introducing the Raleigh Hockley – where British heritage meets cutting-edge electric innovation. Designed for the discerning urban rider, the Hockley redefines city commuting with timeless style, premium comfort, and the powerful assistance of the Bosch Performance Line SX motor and 400wh battery.
Crafted around a sleek, lightweight aluminium frame with seamless integration of motor, battery, and cabling, the Hockley blends form and function in perfect harmony. 55Nm of torque from its whisper-quiet Bosch motor makes every ride through the city streets feel smooth, swift, and exhilarating.
Available in high and mid-step frame options to suit your riding style, the Hockley features an ICHU Head Shock suspension system offering 20–25mm travel (frame size dependent). It delivers a refined ride that softens city bumps while preserving a clean, minimalist look.
Named after Nottingham’s vibrant Hockley district, this e-bike carries the soul of the city in every detail. Whether it’s dodging puddles, navigating rough roads, or gliding through late-night lights, the Raleigh Hockley is ready for every urban adventure.
Range Calculator
Use this calculator to better estimate the range you might achieve based on your riding conditions:
(Please check the specification to ensure your select the correct motor and battery. The total travel distance will depend on the capacity of the battery, rider and luggage weight, power mode setting and riding style.)
Important
Please be aware that this bike is regulated in line with existing Electric Power Assisted Cycles regulations. Any modification to the bike will invalidate the guarantee and in particular any modification which increases the power of the motor and/or the top assisted speed of the bike may make the rider liable to prosecution. Excluding statutory obligations Raleigh will not be held responsible for any injuries incurred following any modification to this product.
Key Features

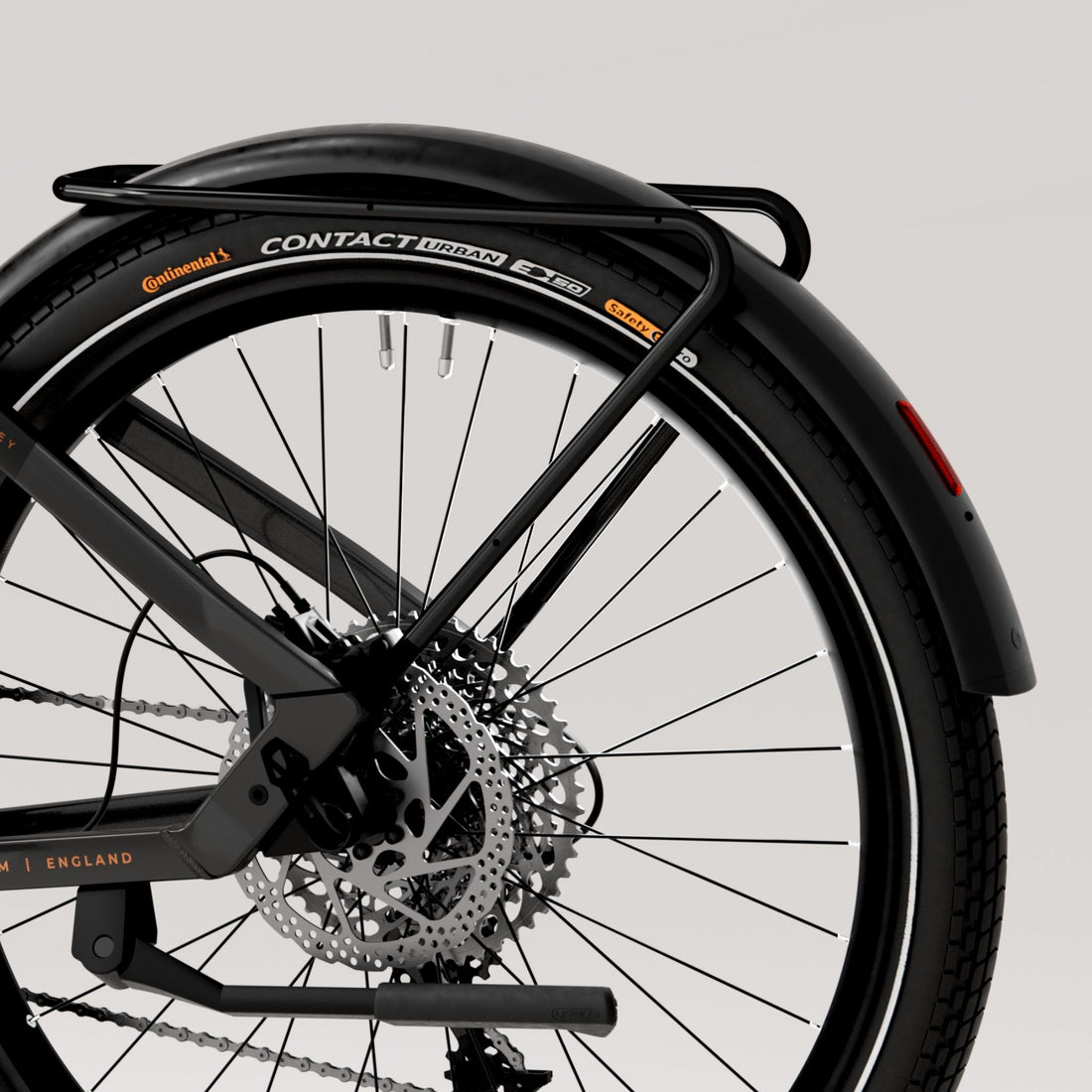

Fully-Kitted

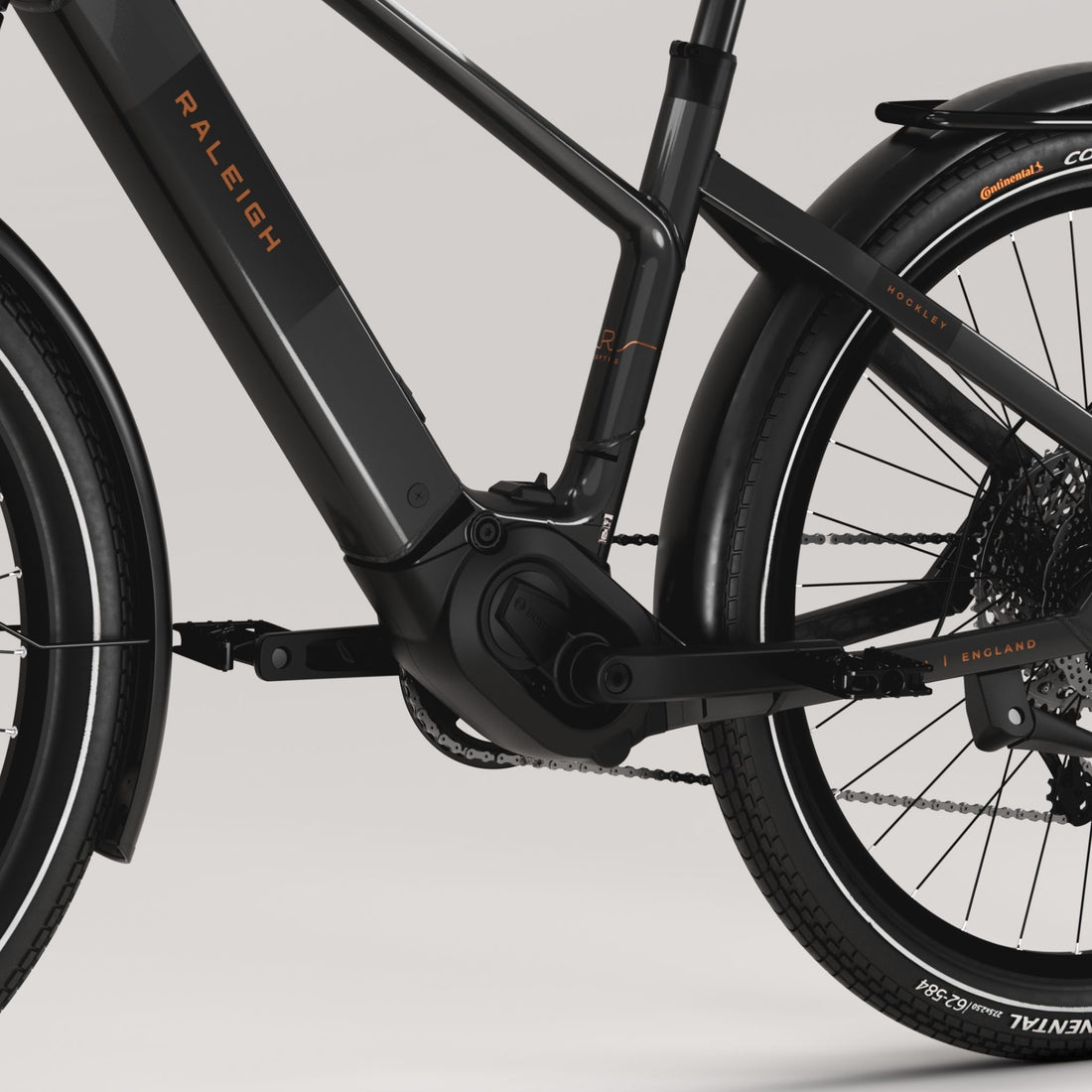

Lightweight Features

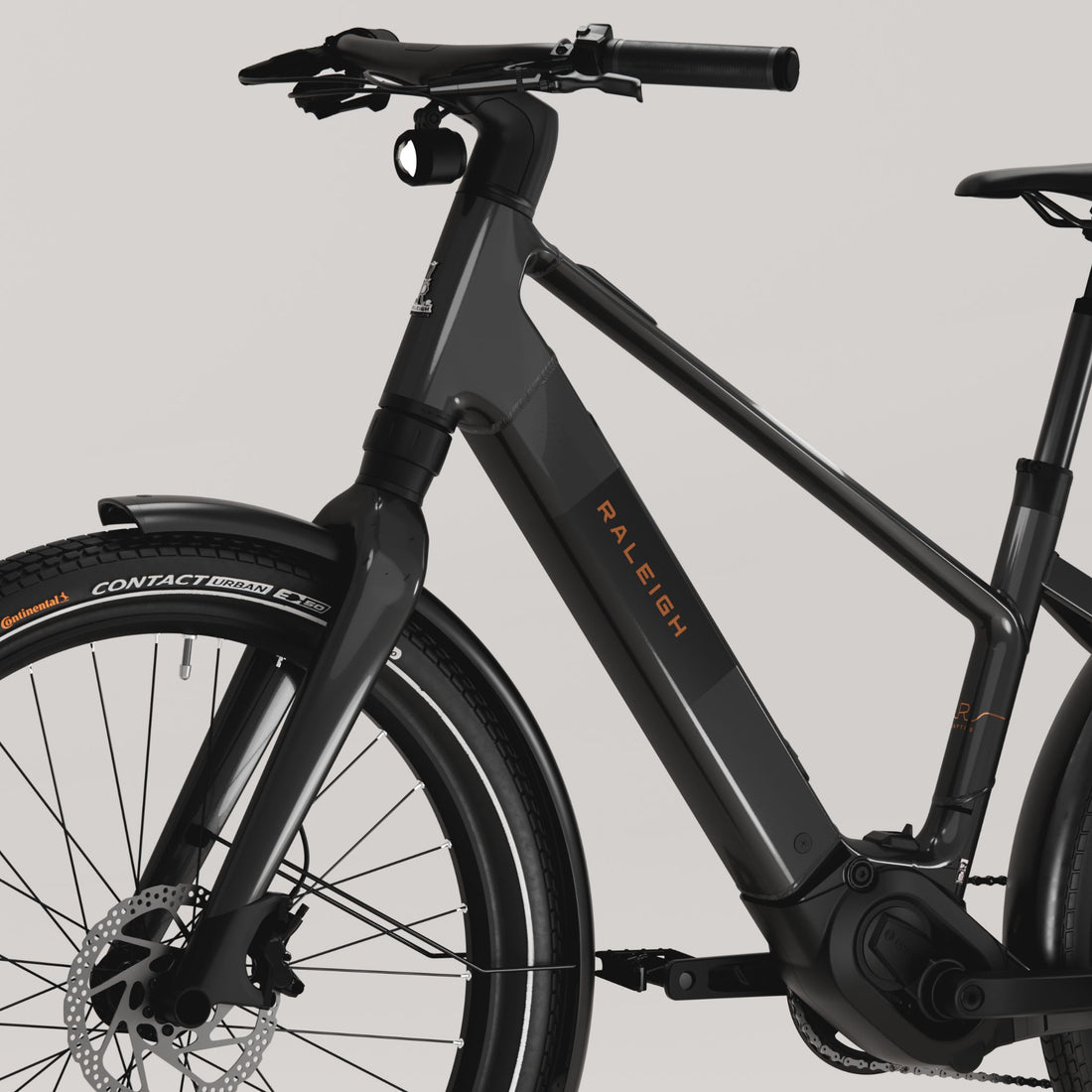

Bosch E-System
Specifications
e-System
e-System
Battery: Bosch Li-ION
Charger: Bosch Smart Charger Charger 2A 220-240V
Display: Bosch Mini Remote System Controller + Mini Remote
Motor: Bosch Performance Line SX (Smart System)
Frame
Frame
Frame: MID Aluminium Mid-Step
Modular Rail System: No
Maximum loadable weight: 130 kg
Drive
Drive
Cassette: Shimano Cassette CUES CS-LG300-9, HG
Chain: Shimano Chain CN-LG500 9-11s, LINKGLIDE
Crankset: Delta ISIS Cranks + CR MIRANDA CF3D + Bashguard
Derailleur Rear: Shimano Cues CUES RD-U4000-GS 9s, Shadow+
Gear: Shimano Derailleur CUES
Number of gears: 9
Shifter Right: Shimano Triggershift CUES SL-U4000-9R, Rapidfire+
Suspension
Suspension
Front Fork: Raleigh Alloy Rigid
Rear Travel:
Shock:
Travel:
Components
Components
Front Brake: Shimano Hydraulic Disc brake BR-MT200, 2 pistons, resin pad, 180 mm
Rear Brake: Shimano Hydraulic Disc brake BR-MT200, 2 pistons, resin pad, 180 mm
Headlight: Litemove Via E-bike System AE-110 Ri, 8-16V
Rear Light: Buchel Via E-bike System Nano COB, 6-12V
Brake light: No
Grips: XLC

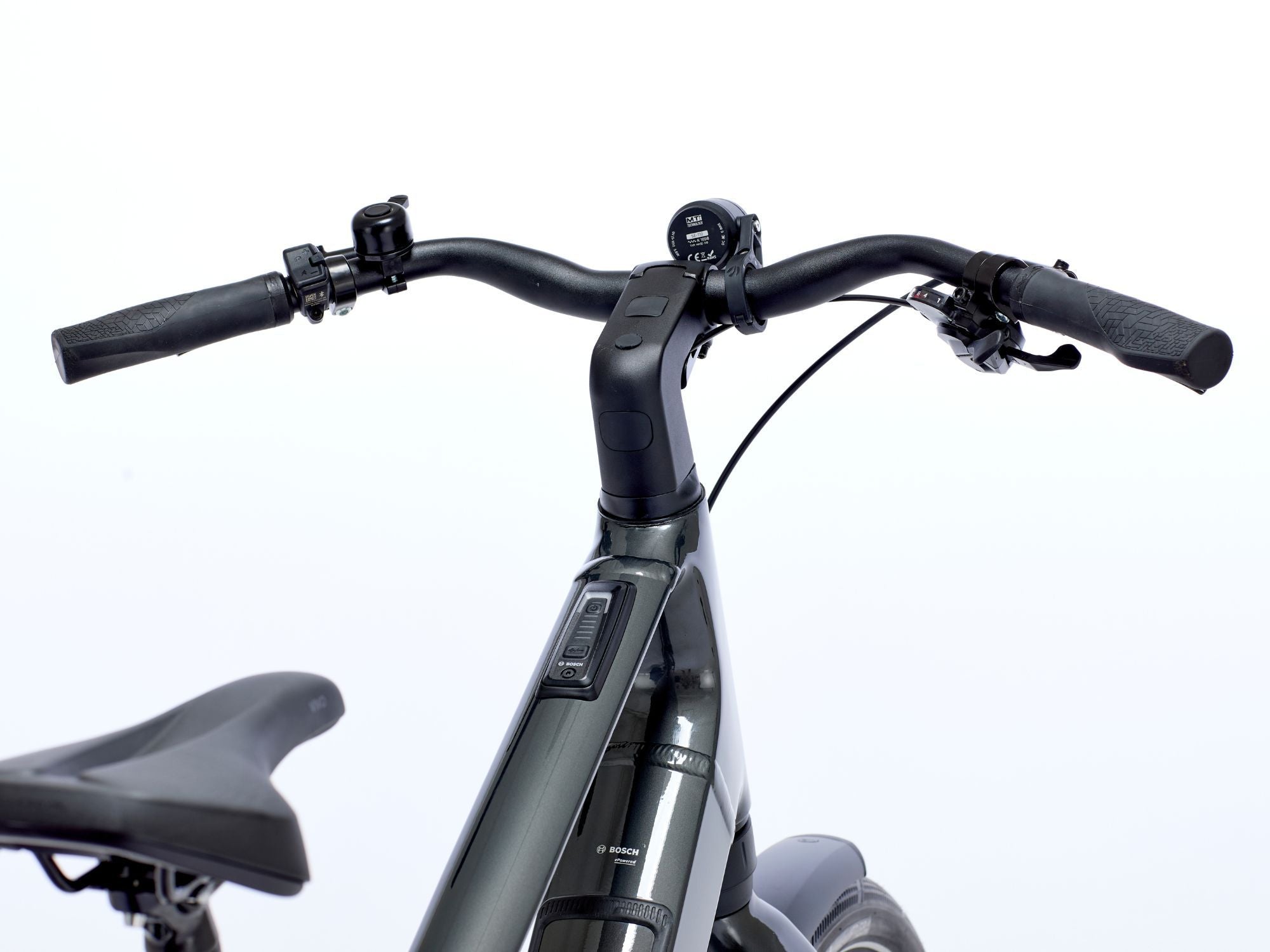

Handlebar: XLC Riser Bar JD-TR25AL, Dia. 31.8 mm, L: 640 mm
Pedal: VP VPE-625 Petal w. Reflector

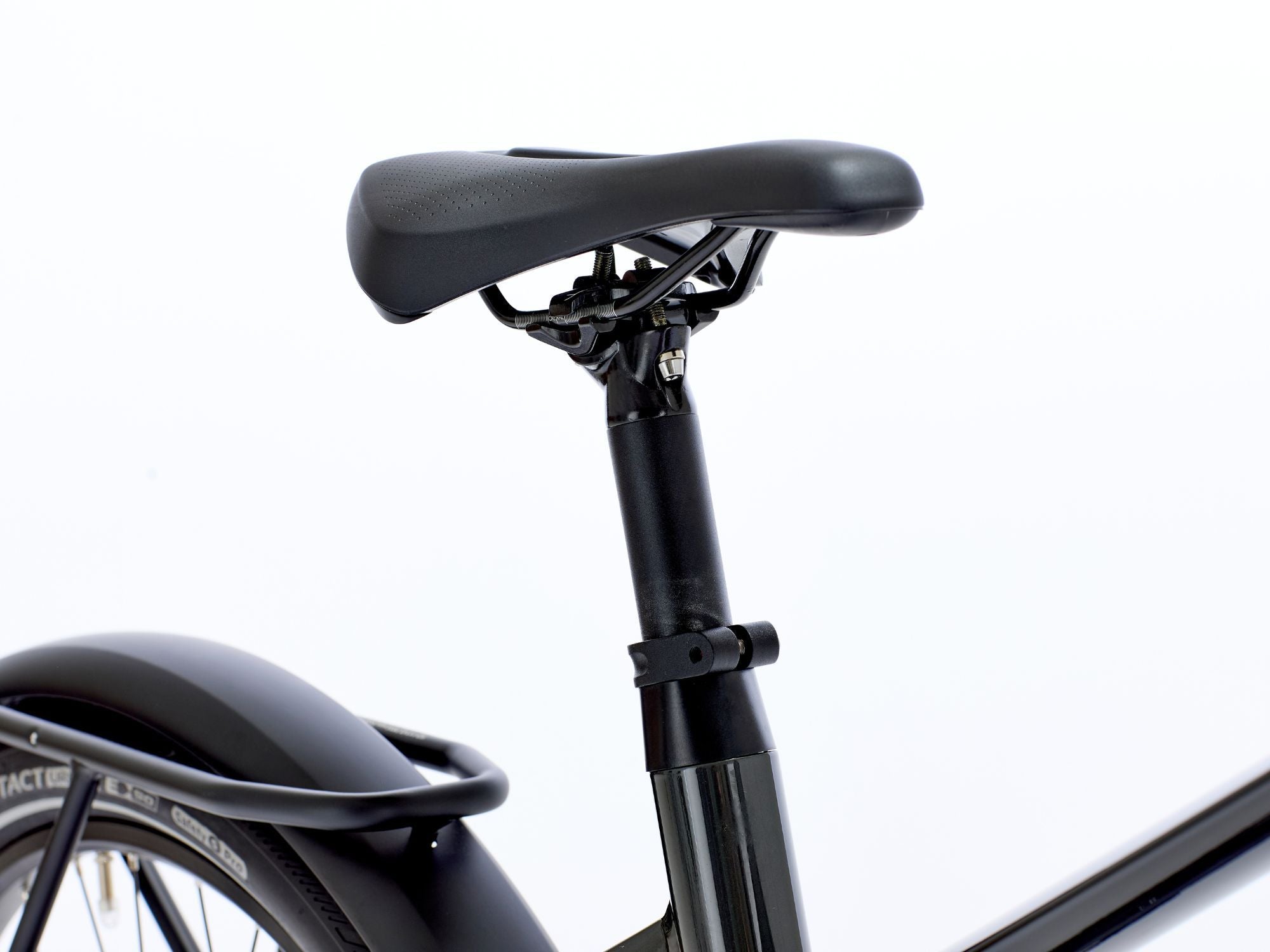

Saddle: Selle Royal Tour Vivo Unitech
Seatpost: XLC Non Suspension SP-DC1, Dia. 31.6 mm, L: 350 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Schurmann YAK Disc 25-584 32H 8,5 mm Valve
Tyre: Continental Contact Urban BL Reflex 62-584
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
