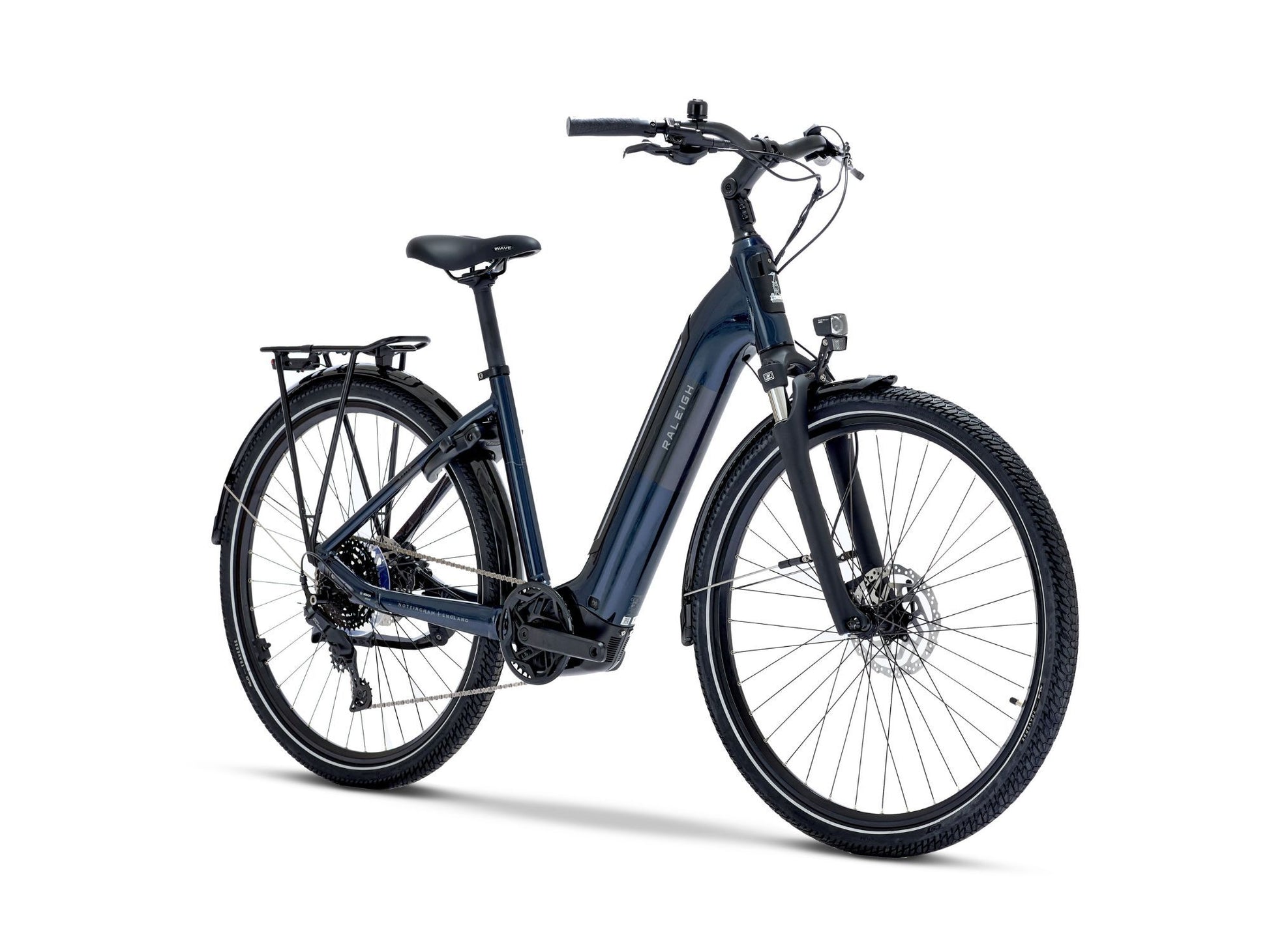

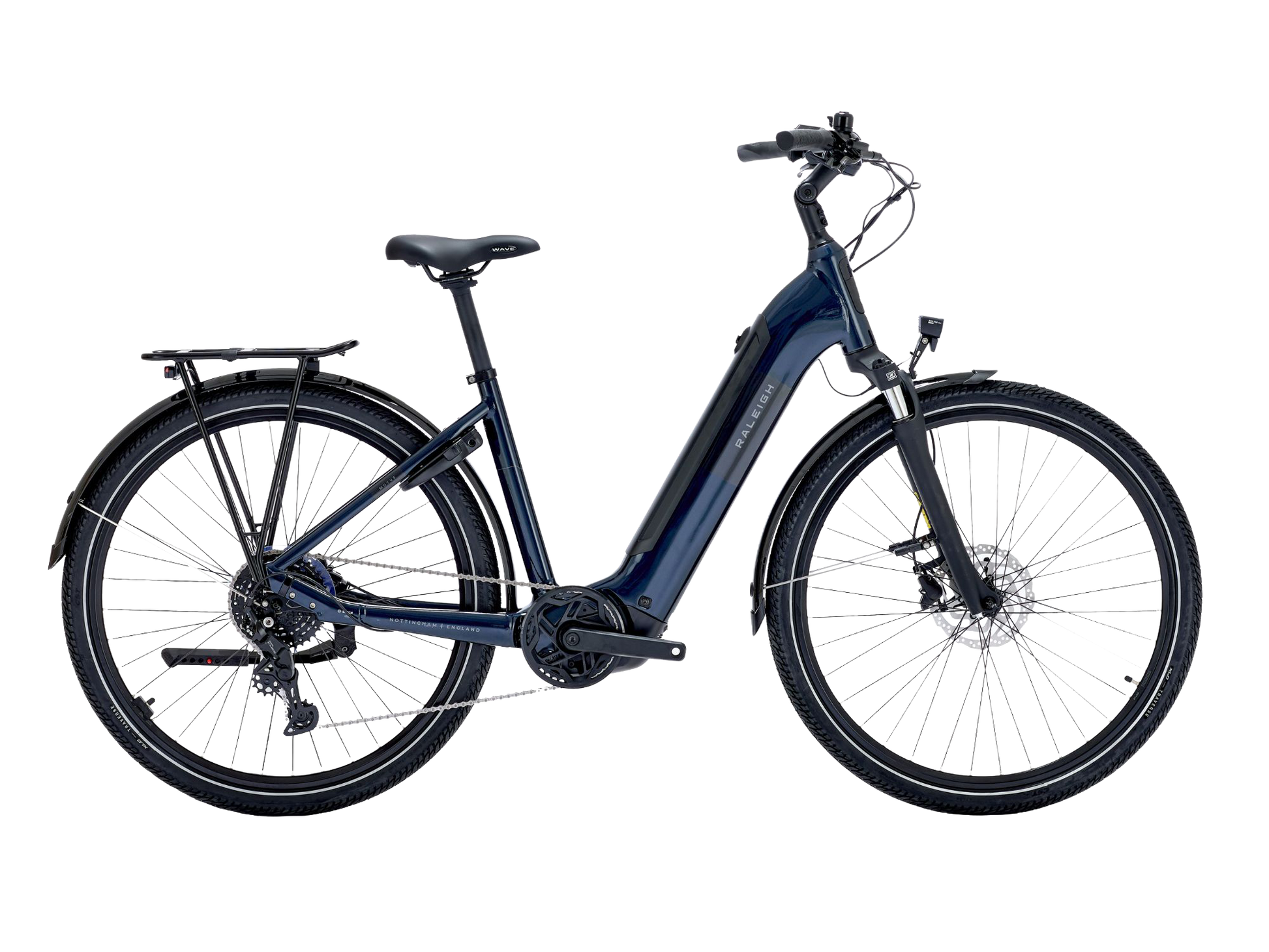

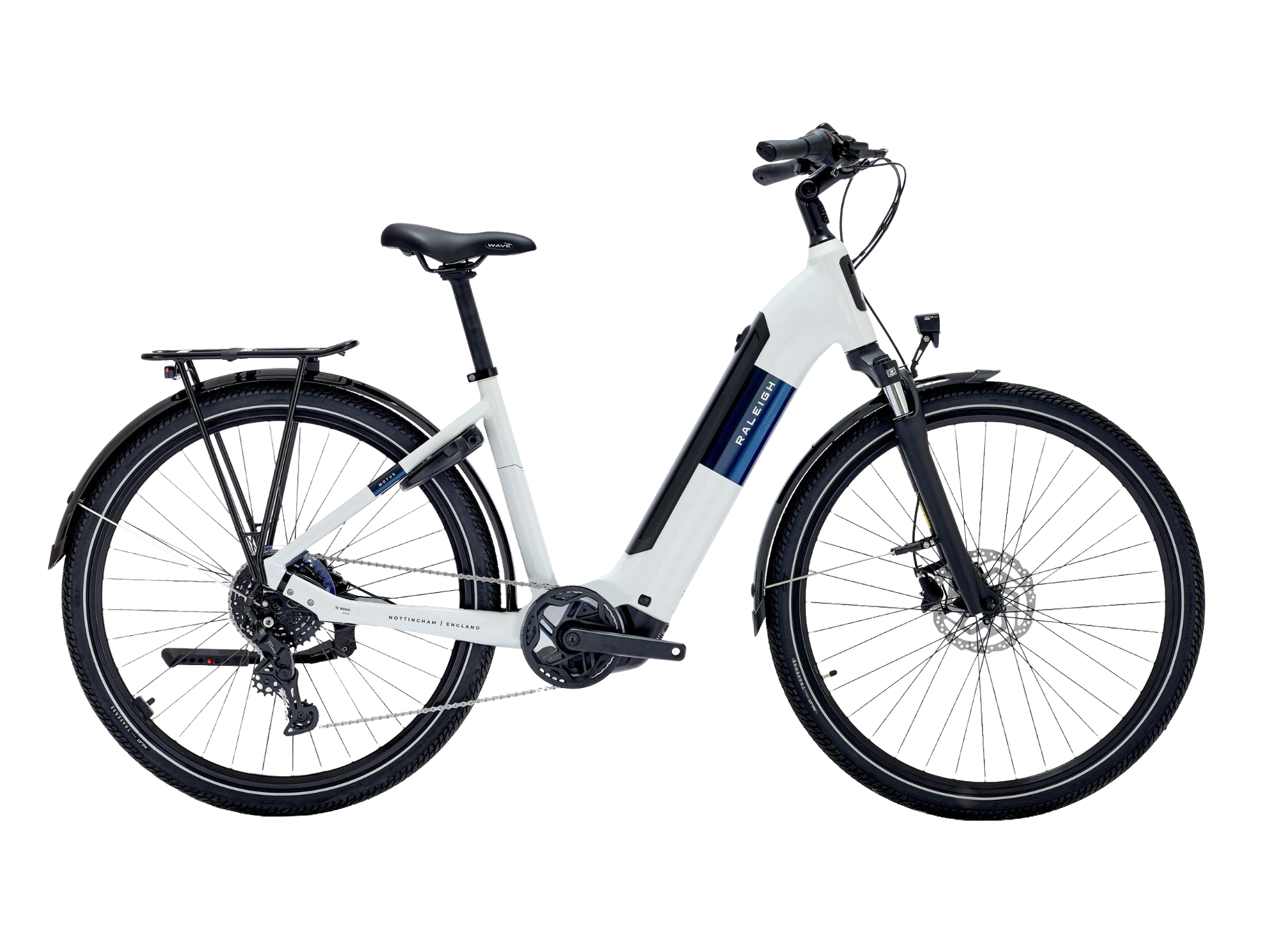

MOTUS - DERAILLEUR GEAR ELECTRIC BIKE
MOTUS - DERAILLEUR GEAR ELECTRIC BIKE
Description
For riders who know what they want.
The Motus derailleur gives you crisp, confident shifting across the board. Control when you want it, ease when you need it.
Powered by Bosch’s Performance Line motor with 75Nm of torque and a 500Wh battery, it makes hard rides feel suspiciously easy. It’s as quiet as it is capable — which is saying something.
We’ve refined the frame, too. It’s lighter, neater, and sleeker than the last one. We’ve taken what worked and made it better.

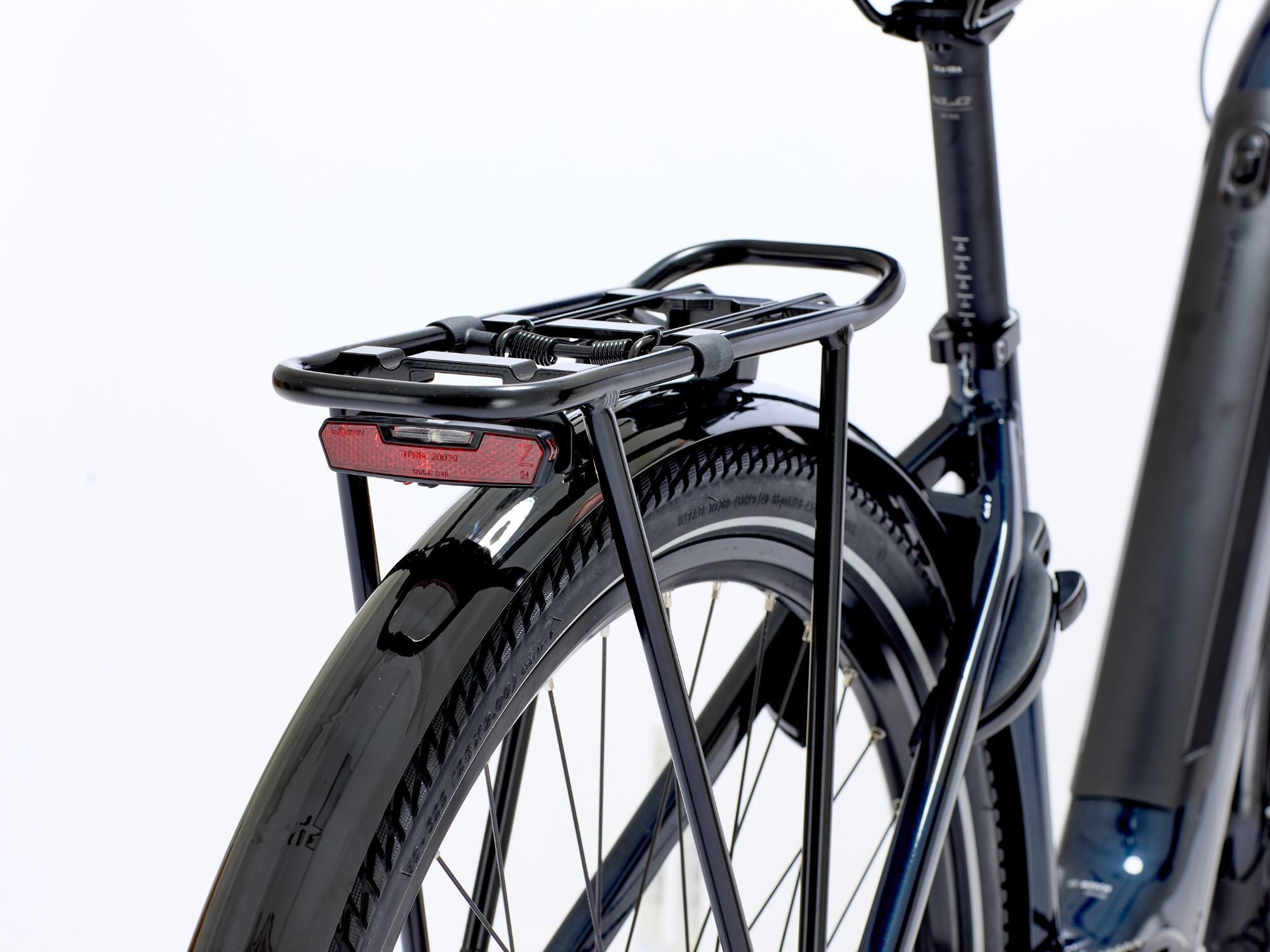

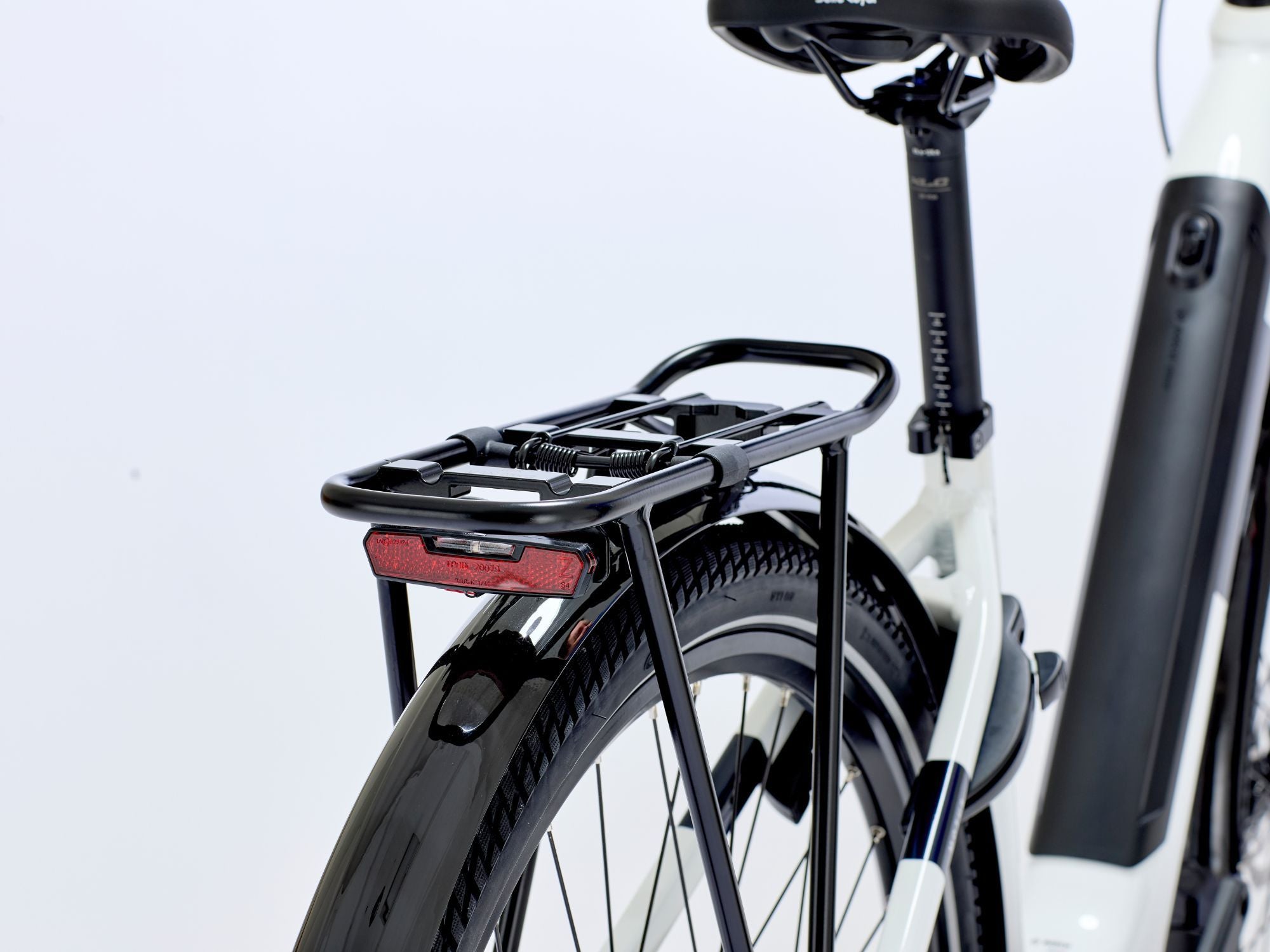

Full mudguards, integrated lights, and a rack that’s happy carrying the weight of your day. Ready when you are, and then some.
All the best bits of cycling, minus the hassle. No traffic, no sweaty hills, no overthinking. Just get on and go - to work, to the shops, out of town for no reason at all. You start finding excuses to take the long way home. And somehow, being on time becomes your new habit.
Range Calculator
Use this calculator to better estimate the range you might achieve based on your riding conditions:
(Please check the specification to ensure your select the correct motor and battery. The total travel distance will depend on the capacity of the battery, rider and luggage weight, power mode setting and riding style.)
Important
Please be aware that this bike is regulated in line with existing Electric Power Assisted Cycles regulations. Any modification to the bike will invalidate the guarantee and in particular any modification which increases the power of the motor and/or the top assisted speed of the bike may make the rider liable to prosecution. Excluding statutory obligations Raleigh will not be held responsible for any injuries incurred following any modification to this product.
Key Features
Bosch Performance Line Motor

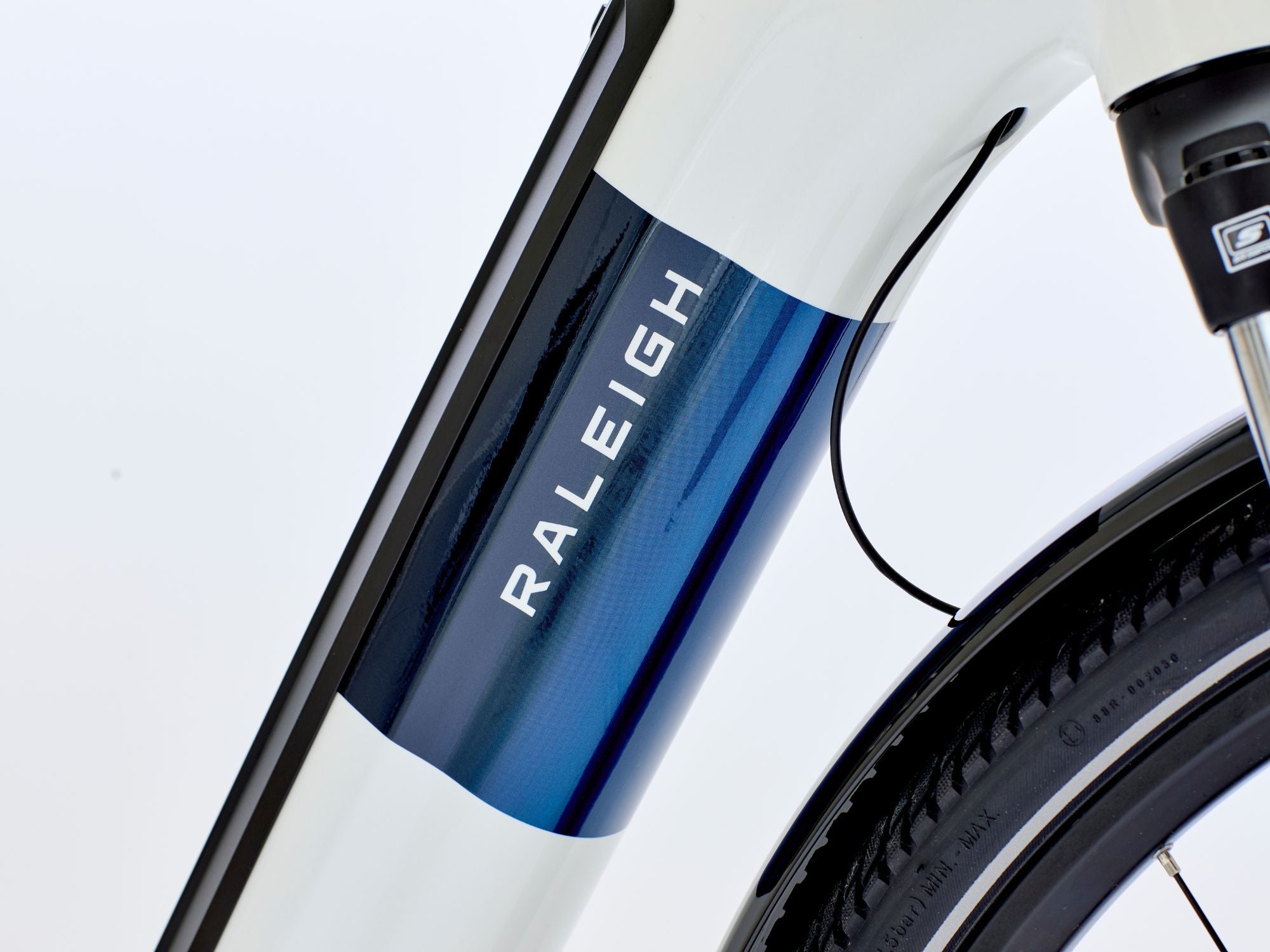

Upgraded Frame
Fully equipped – mudguards, rack, lights
Specifications
e-System
e-System
Battery: Bosch Li-ION
Charger: Bosch Smart Charger Charger 2A 220-240V
Display: Bosch Purion Purion 200
Motor: Bosch Performance Line
Frame
Frame

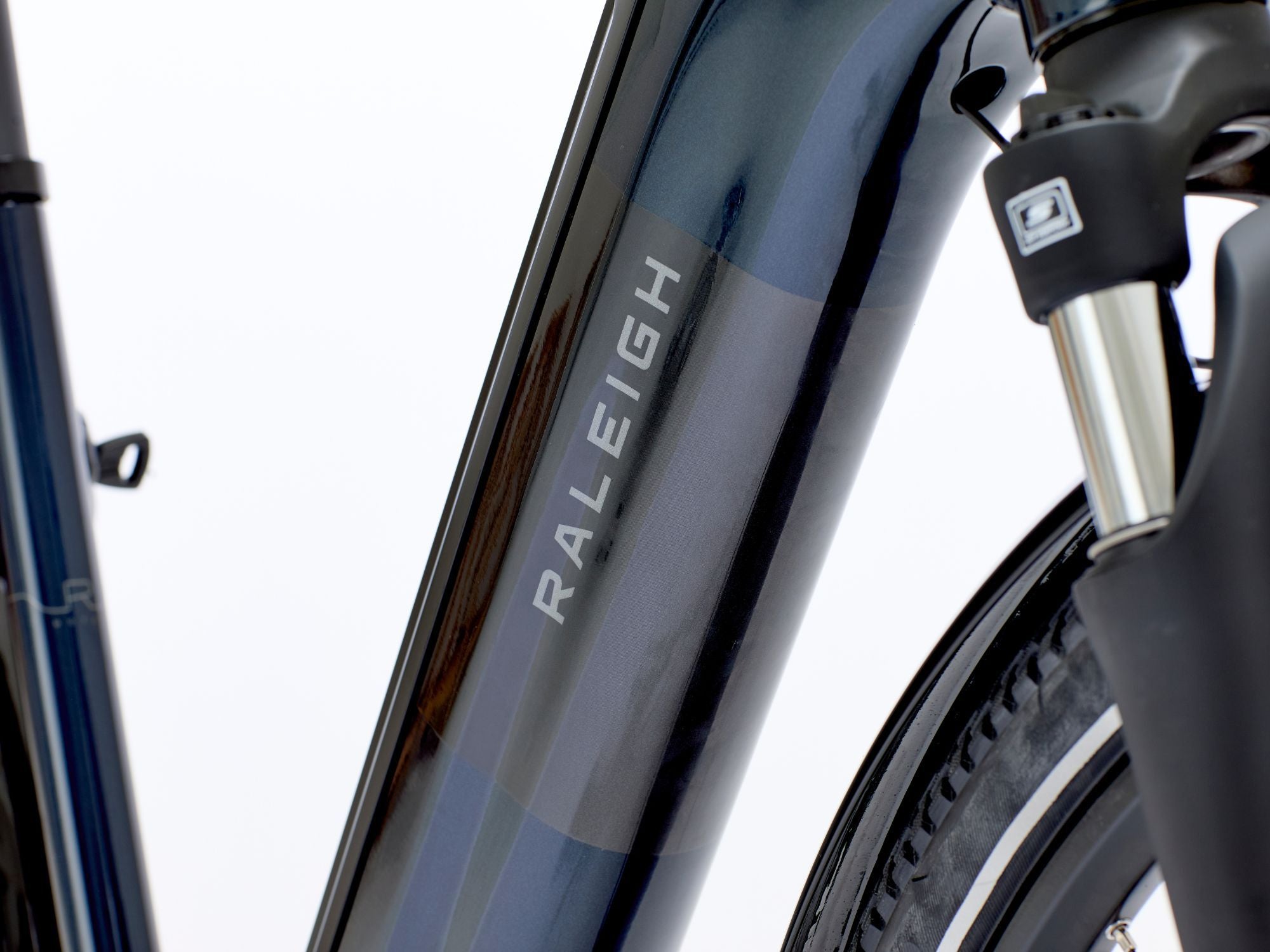

Frame: HIGH Aluminium Low-Step
Modular Rail System: No
Maximum loadable weight:
Drive
Drive
Cassette: Shimano Cassette CUES CS-LG300-9, HG
Chain: Shimano Chain CUES CN-LG500 9-11s, LINKGLIDE
Crankset: EC37-F9 ISIS Cranks + CR EMS06 + XLC Bashring
Derailleur Rear: Shimano Cues CUES RD-U4000-GS 9s, Shadow+
Gear: Shimano Derailleur
Number of gears: 9
Shifter Right: Shimano Triggershift CUES SL-U4000-9R, Rapidfire+
Suspension
Suspension
Front Fork: Suntour SF24 NEX E25 DS, 50 mm
Rear Travel:
Shock:
Travel:
Components
Components
Front Brake: Shimano Hydraulic Disc brake Altus BR-MT200, 2 pistons, resin pad, 180 mm
Rear Brake: Shimano Hydraulic Disc brake Altus BR-MT200, 2 pistons, resin pad, 160 mm

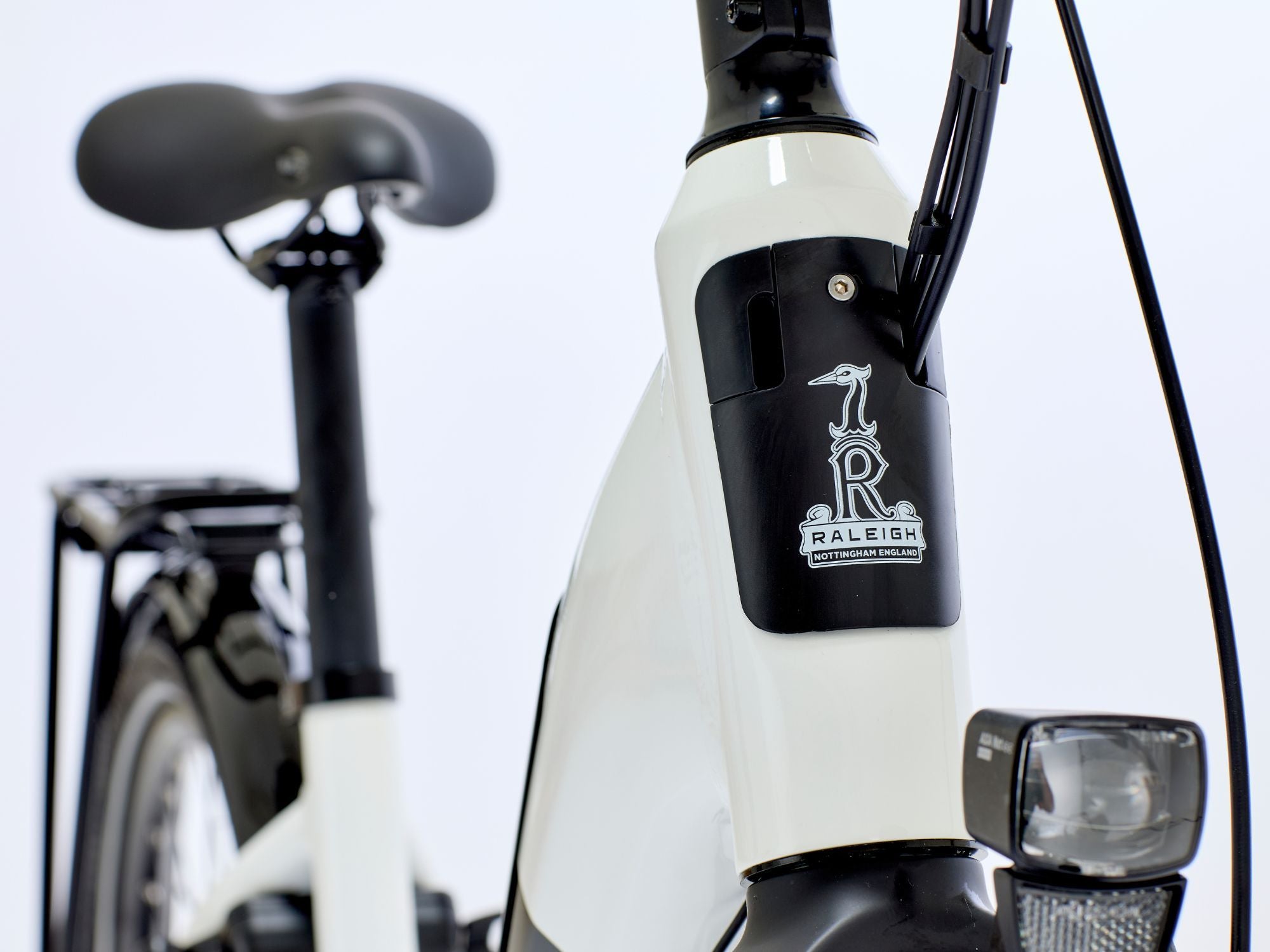

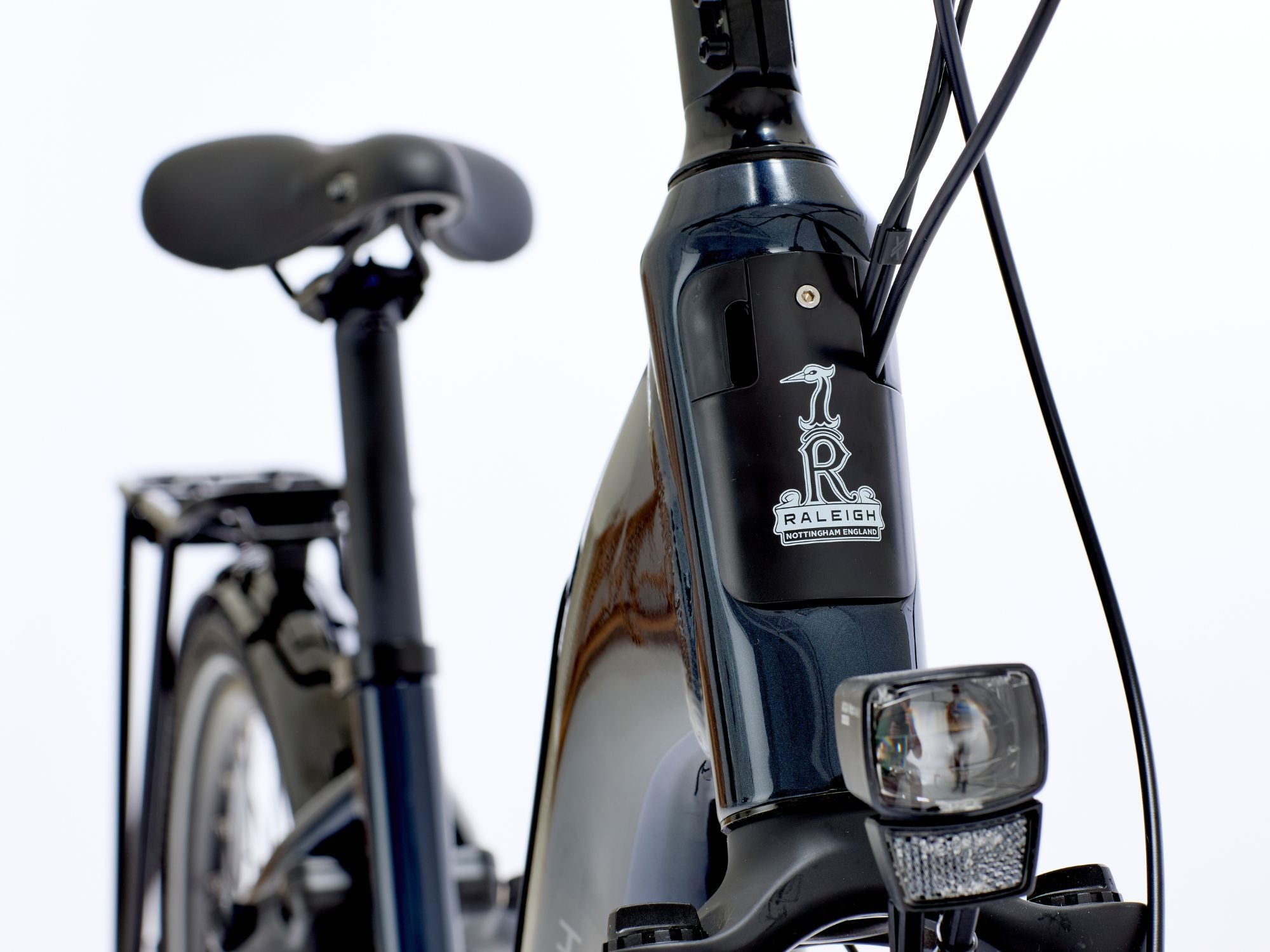

Headlight: AXA Via E-bike System NXT 45 E-Bike, 45 Lux, 5-12V
Rear Light: AXA Via E-bike System Juno E-Bike, 6-12V
Brake light: No
Grips: XLC

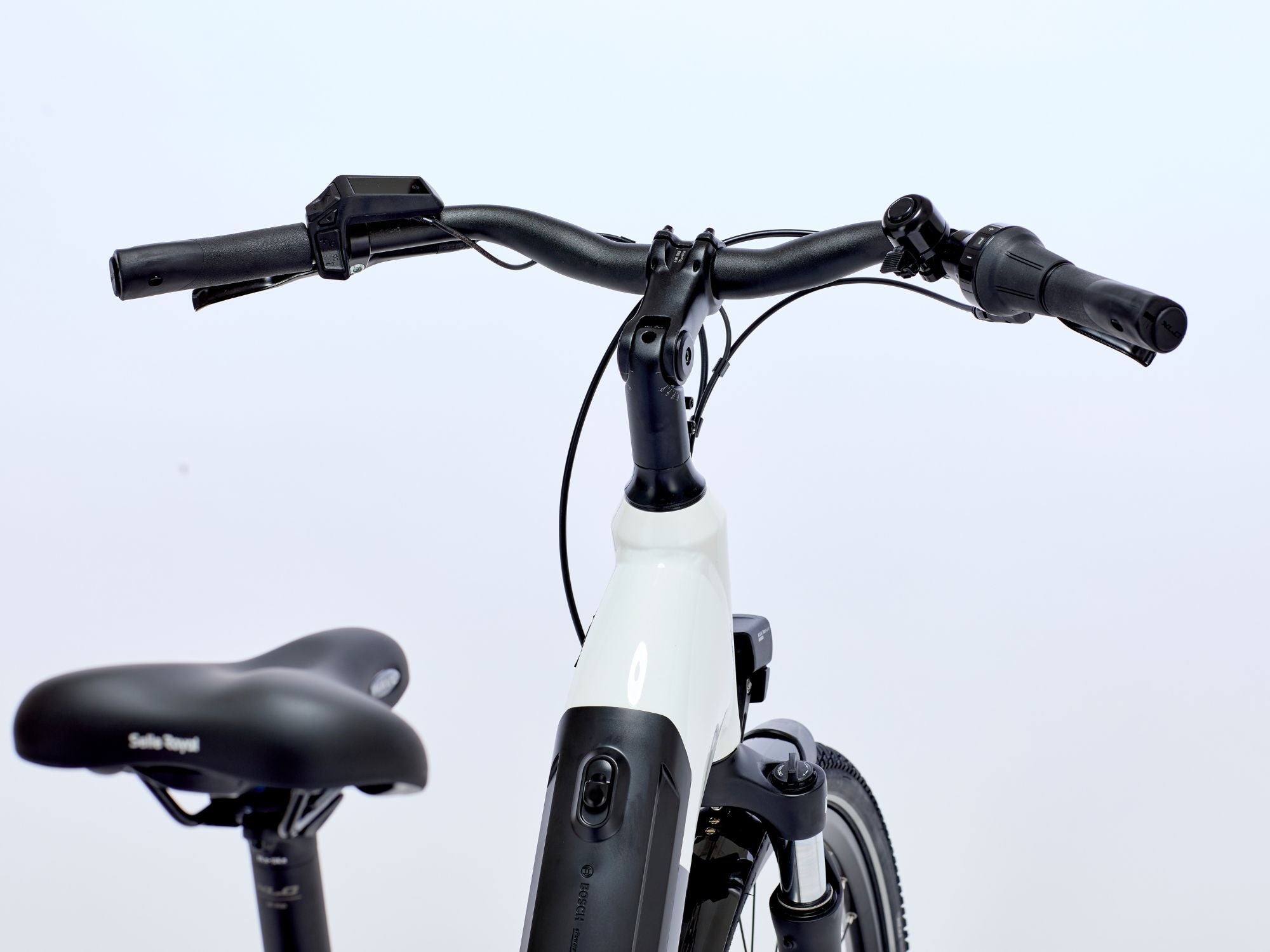

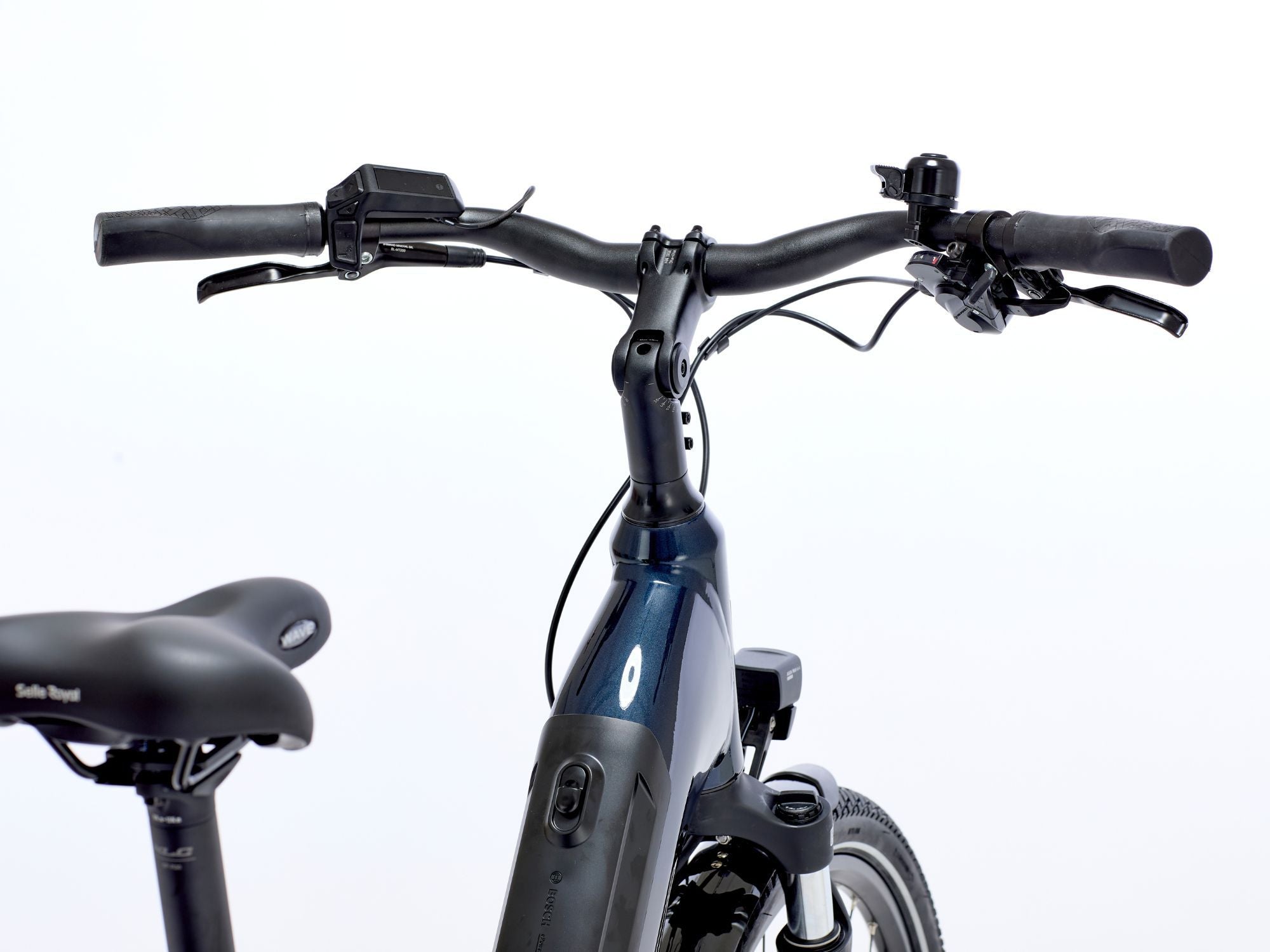

Handlebar: XLC Flat bar JD-TR25AL, Dia. 31.8 mm, L: 640 mm
Pedal: XLC VPE-527 Alloy w/ Reflector

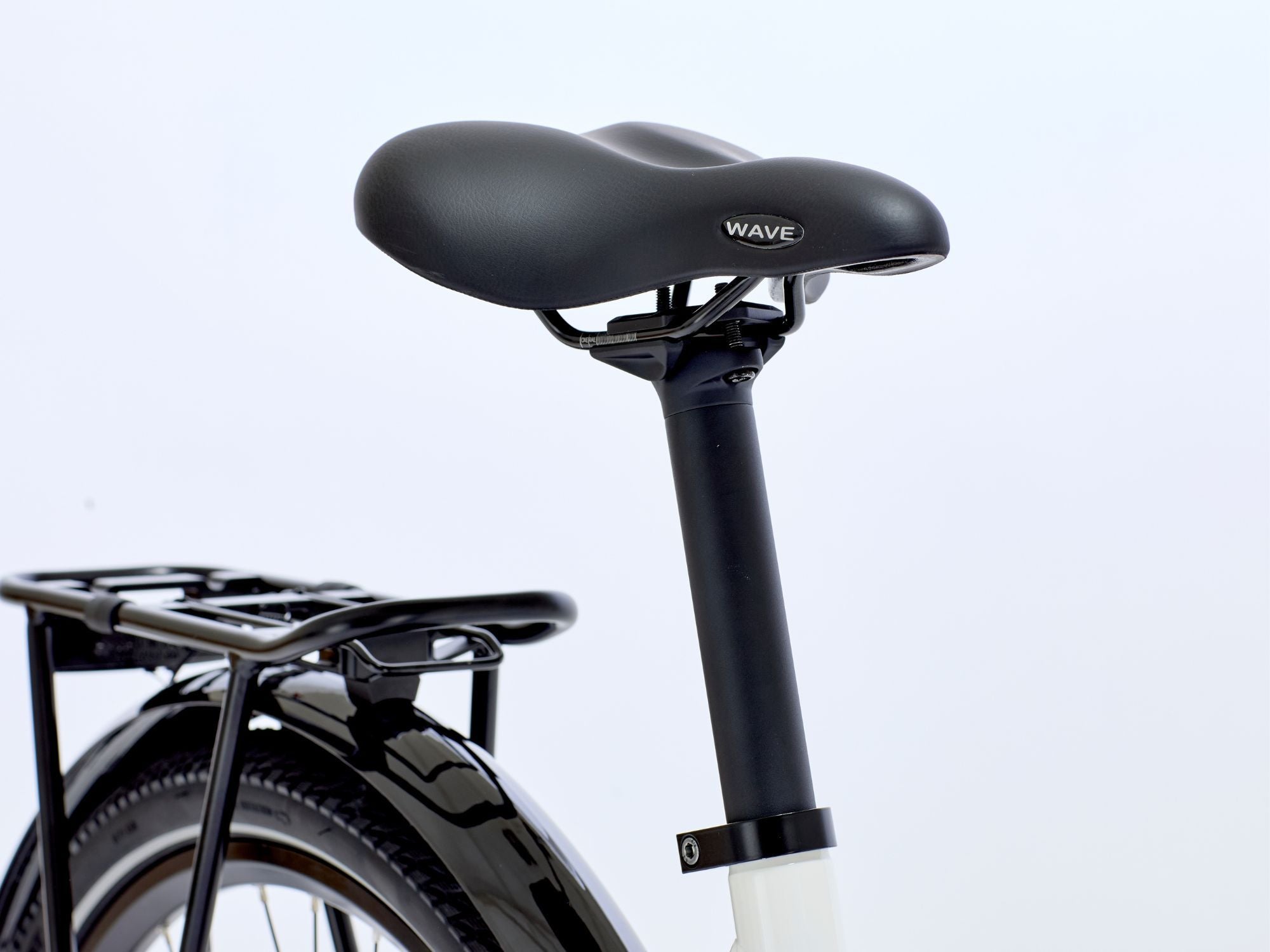

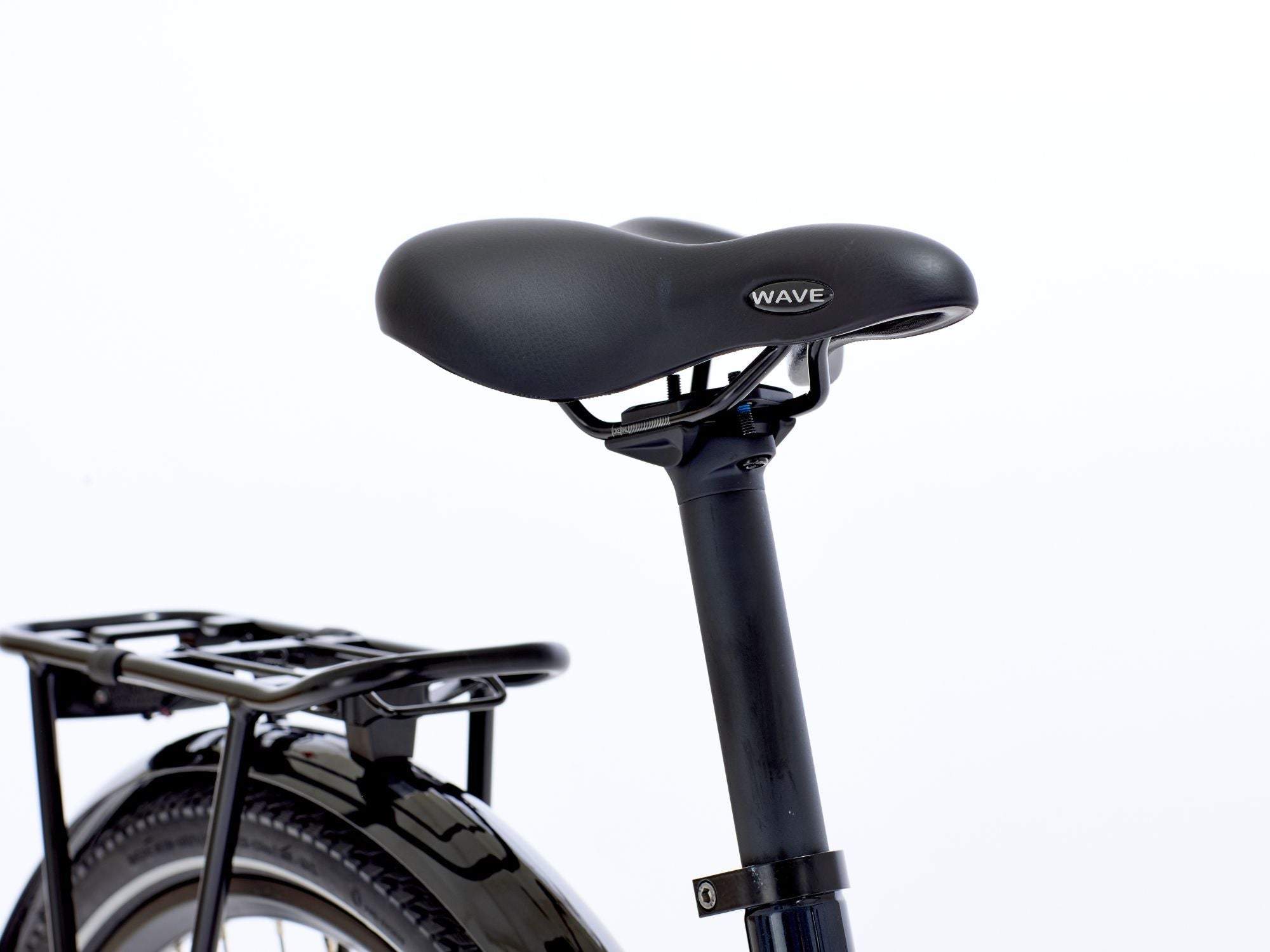

Saddle: Selle Royal Tour Wave 8214 DC
Seatpost: XLC Non Suspension SP-R30, Dia. 31.6 mm, L: 300 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Ryde ZAC 421 36H 8,5 mm Valve
Tyre: XLC Traverse CTC 50-622
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
