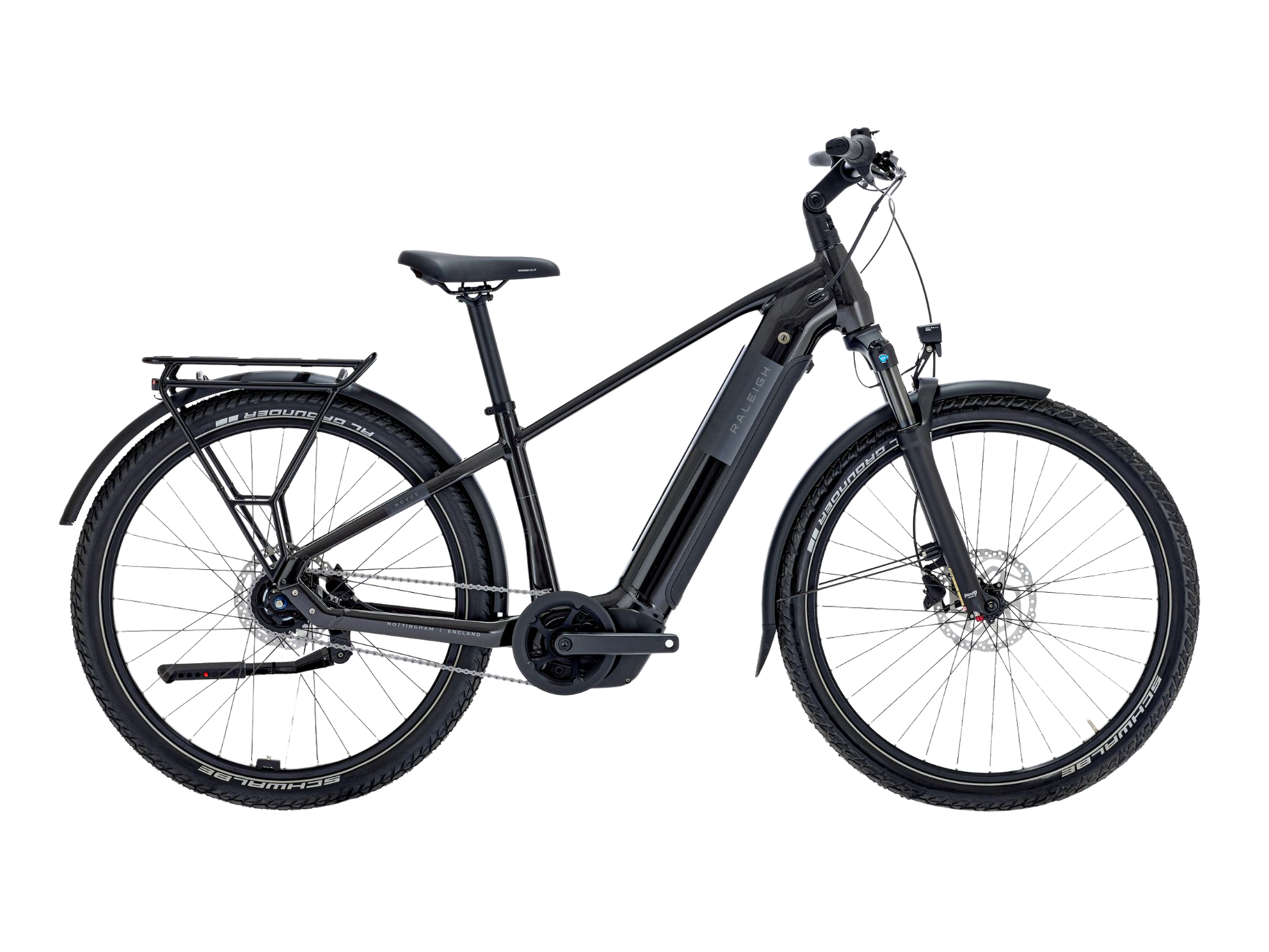

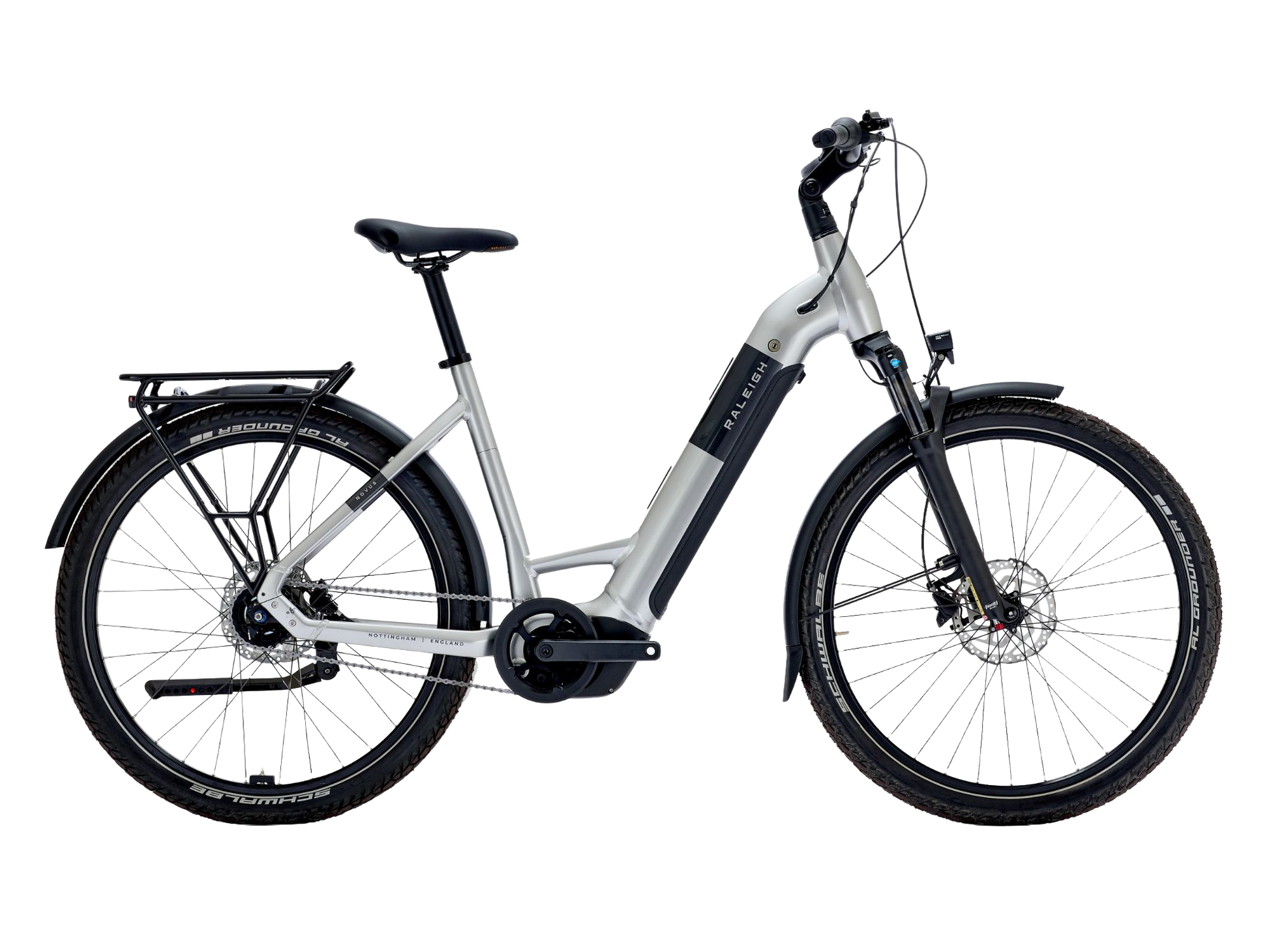

NOVUS - HUB GEAR ELECTRIC BIKE
NOVUS - HUB GEAR ELECTRIC BIKE
Description
Conquer the city and then leave it behind with the Novus; an electric bike made for adventure off-road and on. Commute… dominated. Weekends… upgraded.
With a sealed internal gear system, the Novus Hub keeps maintenance to a minimum and rides silky-smooth - whether you’re coasting through the city or heading for the hills.

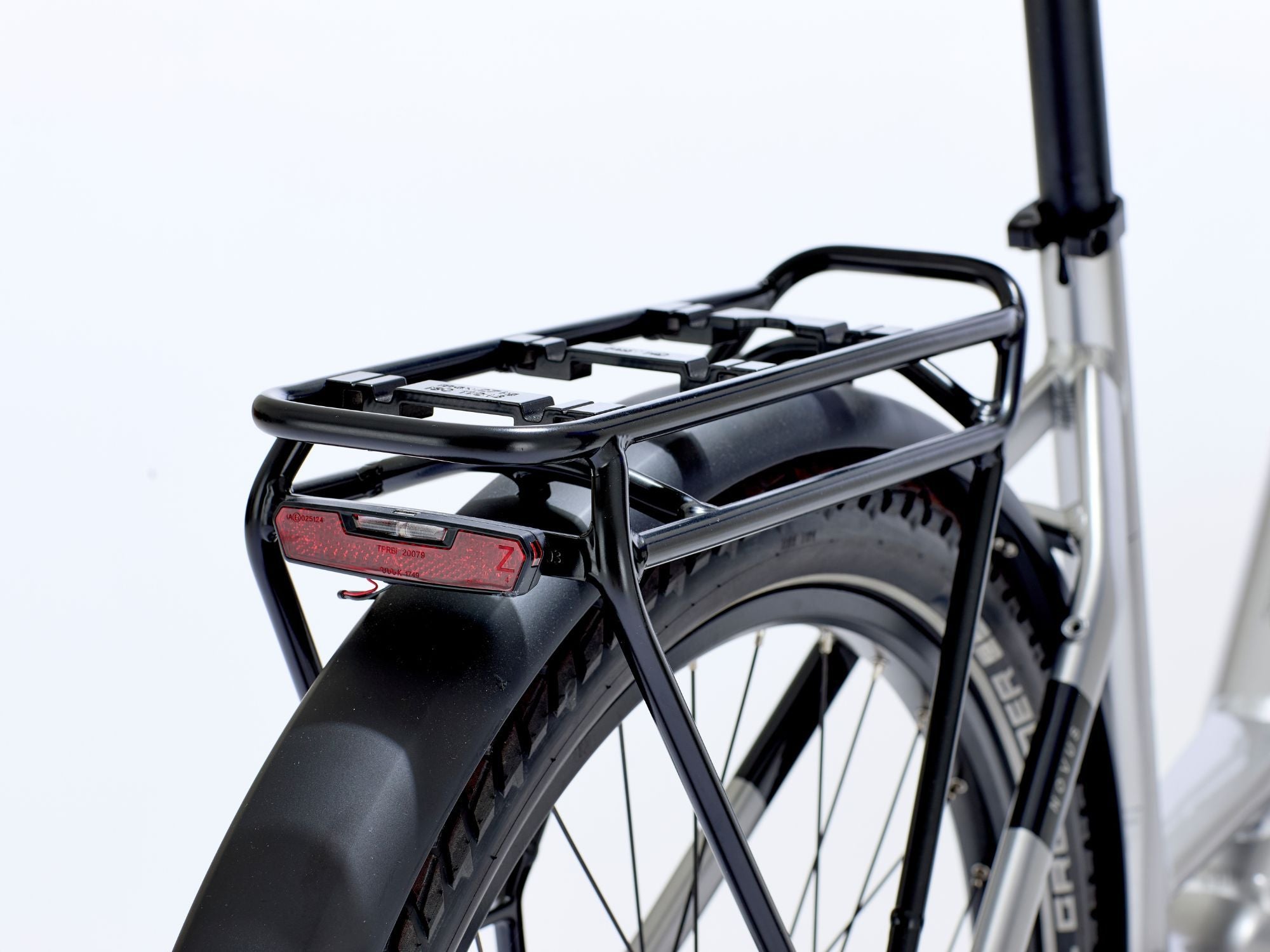

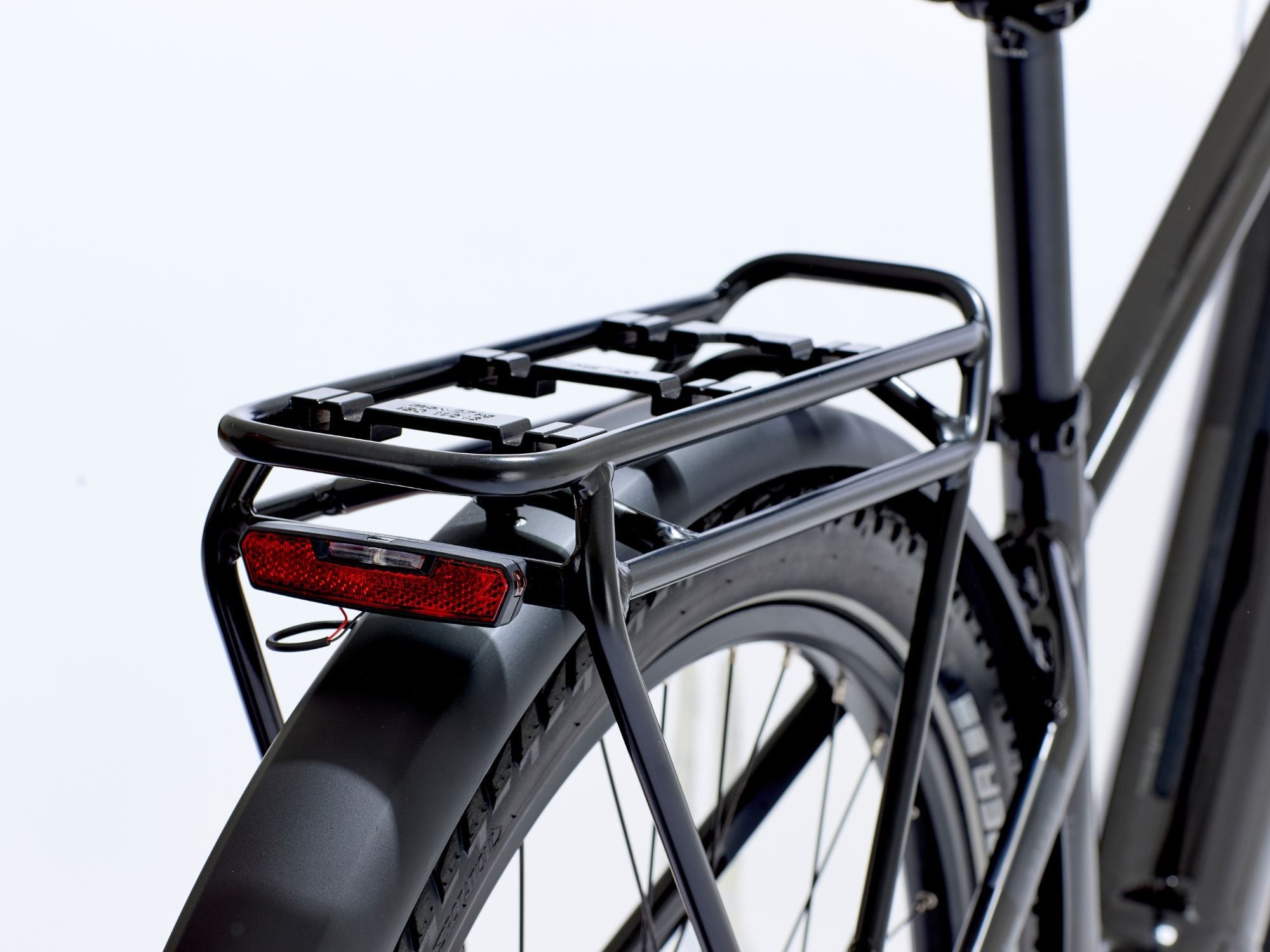

Driven by a Bosch Performance Line motor and a robust 600wh battery, it delivers up to 83 miles of reliable power. Off-road tyres, 100mm front suspension and hydraulic disc brakes ensure it handles rough tracks and busy streets with equal poise. Mudguards, integrated lights and a 25kg rear rack are all standard — naturally.
From the first ride, you’ll notice the details: ergonomic grips, a supportive Selle Royal Essenza saddle, and your choice of crossbar or step-through frame. It’s designed to keep you comfortable, however far you roam.
Effortless to ride. Effortless to live with. Novus Hub is made for those who prefer life without the unnecessary.
Range Calculator
Use this calculator to better estimate the range you might achieve based on your riding conditions:
(Please check the specification to ensure your select the correct motor and battery. The total travel distance will depend on the capacity of the battery, rider and luggage weight, power mode setting and riding style.)
Important
Please be aware that this bike is regulated in line with existing Electric Power Assisted Cycles regulations. Any modification to the bike will invalidate the guarantee and in particular any modification which increases the power of the motor and/or the top assisted speed of the bike may make the rider liable to prosecution. Excluding statutory obligations Raleigh will not be held responsible for any injuries incurred following any modification to this product.
Key Features

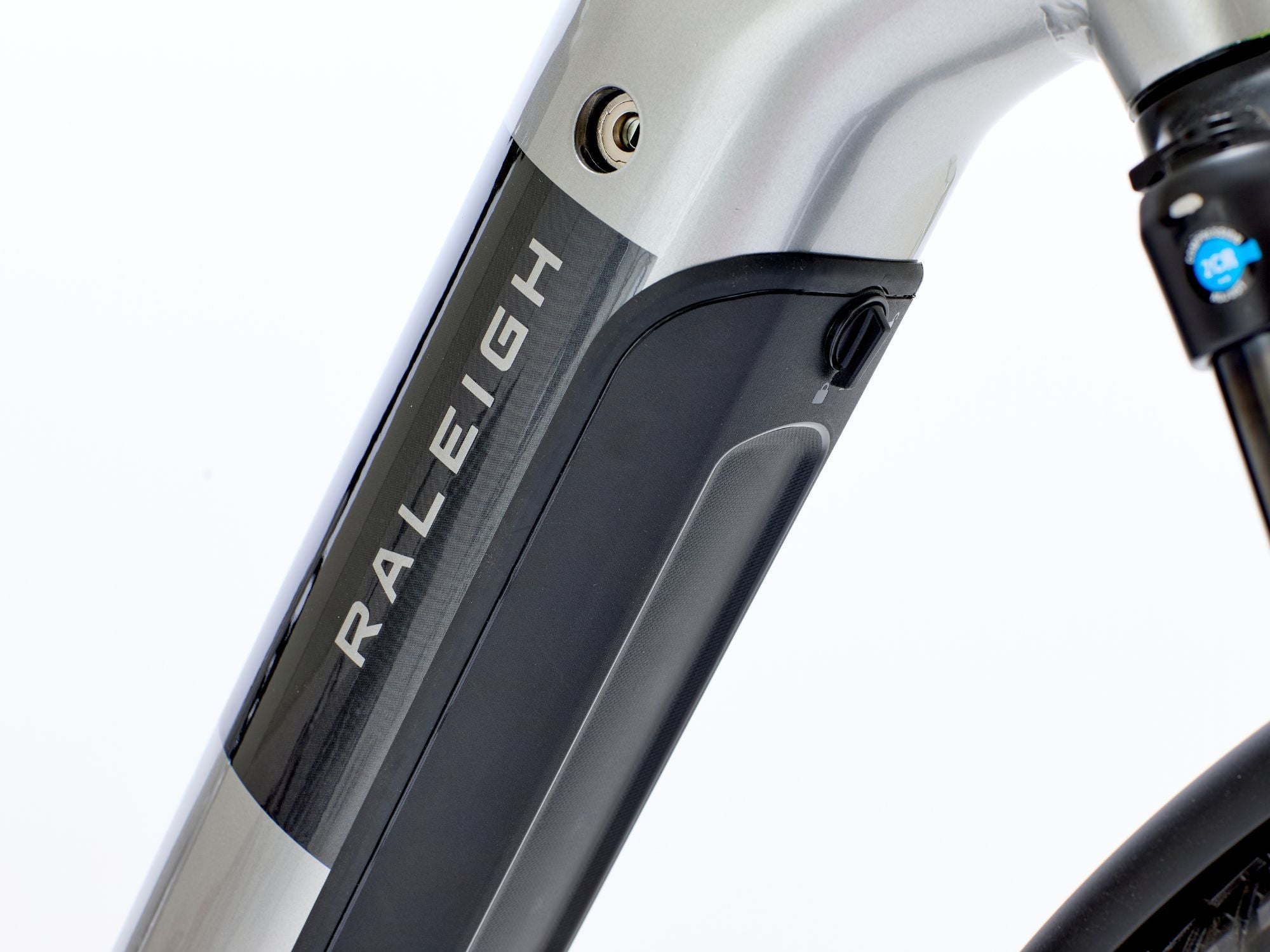

600 Wh Battery
Hub Gears
Off-Road Confidence
Specifications
e-System
e-System
Battery: Bosch Li-ION
Charger: Bosch Smart Charger Charger 2A 220-240V
Display: Bosch Purion Purion 200
Motor: Bosch Performance Line
Frame
Frame
Frame: LOW Aluminium Low-Step
Modular Rail System: Yes
Maximum loadable weight:
Drive
Drive
Cassette: KMC Sprocket Sprocket
Chain: KMC Chain e1 EPT
Crankset: EC37-F9 ISIS Cranks + CR EMS05
Derailleur Rear:
Gear: Shimano Internal Gear Hub
Number of gears: 5
Shifter Right: Shimano Gripshift Nexus SL-C7000-5, Revoshift
Suspension
Suspension
Front Fork: Suntour XCM34 DS Boost, 100 mm
Rear Travel:
Shock:
Travel:
Components
Components
Front Brake: Shimano Hydraulic Disc brake Altus BR-MT200, 2 pistons, resin pad, 180 mm
Rear Brake: Shimano Hydraulic Disc brake Altus BR-MT200, 2 pistons, resin pad, 180 mm
Headlight: AXA Via E-bike System NXT 45 E-Bike, 45 Lux, 5-12V
Rear Light: AXA Via E-bike System Juno E-Bike, 6-12V
Brake light: No
Grips: Herrmans

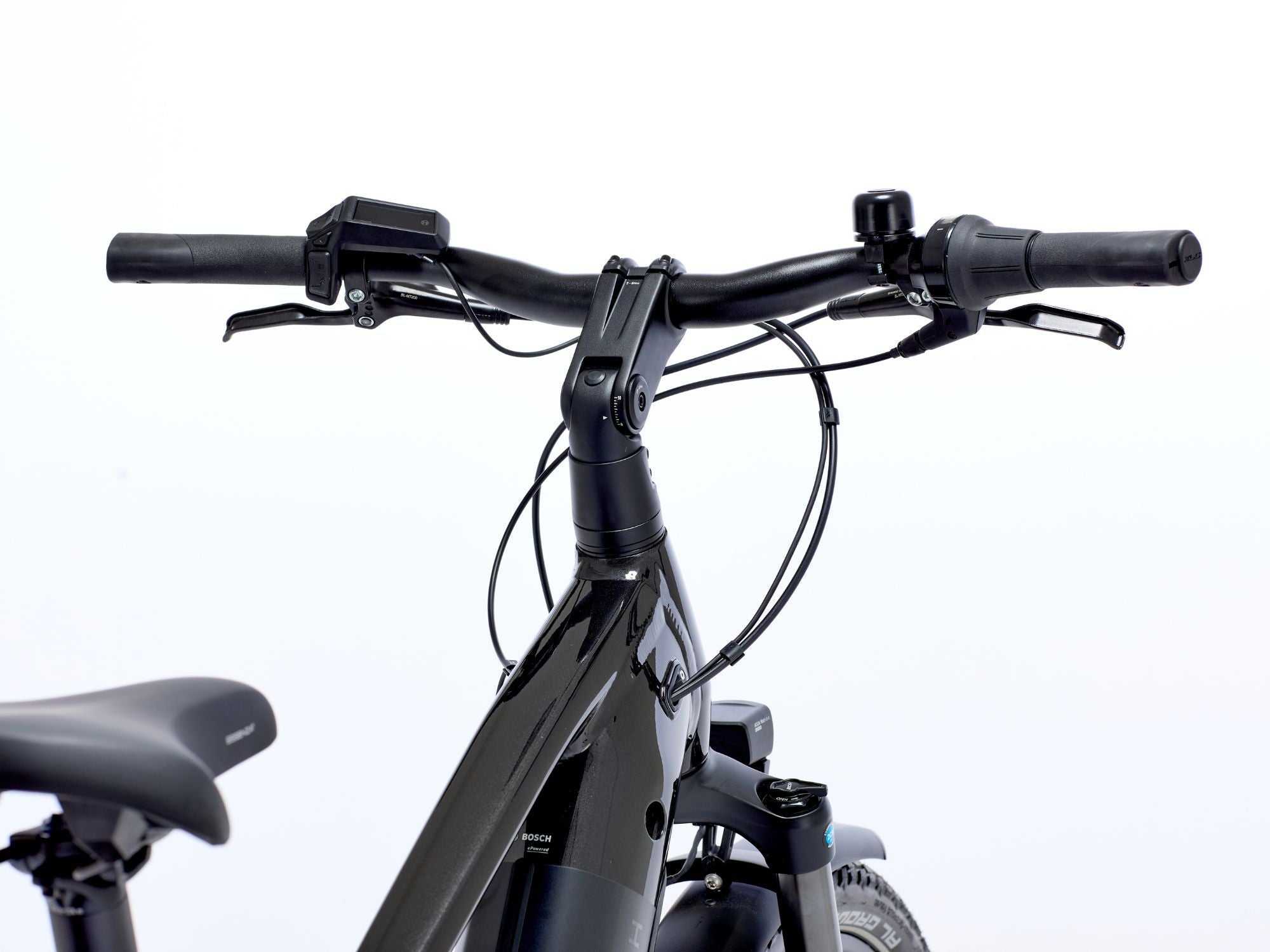

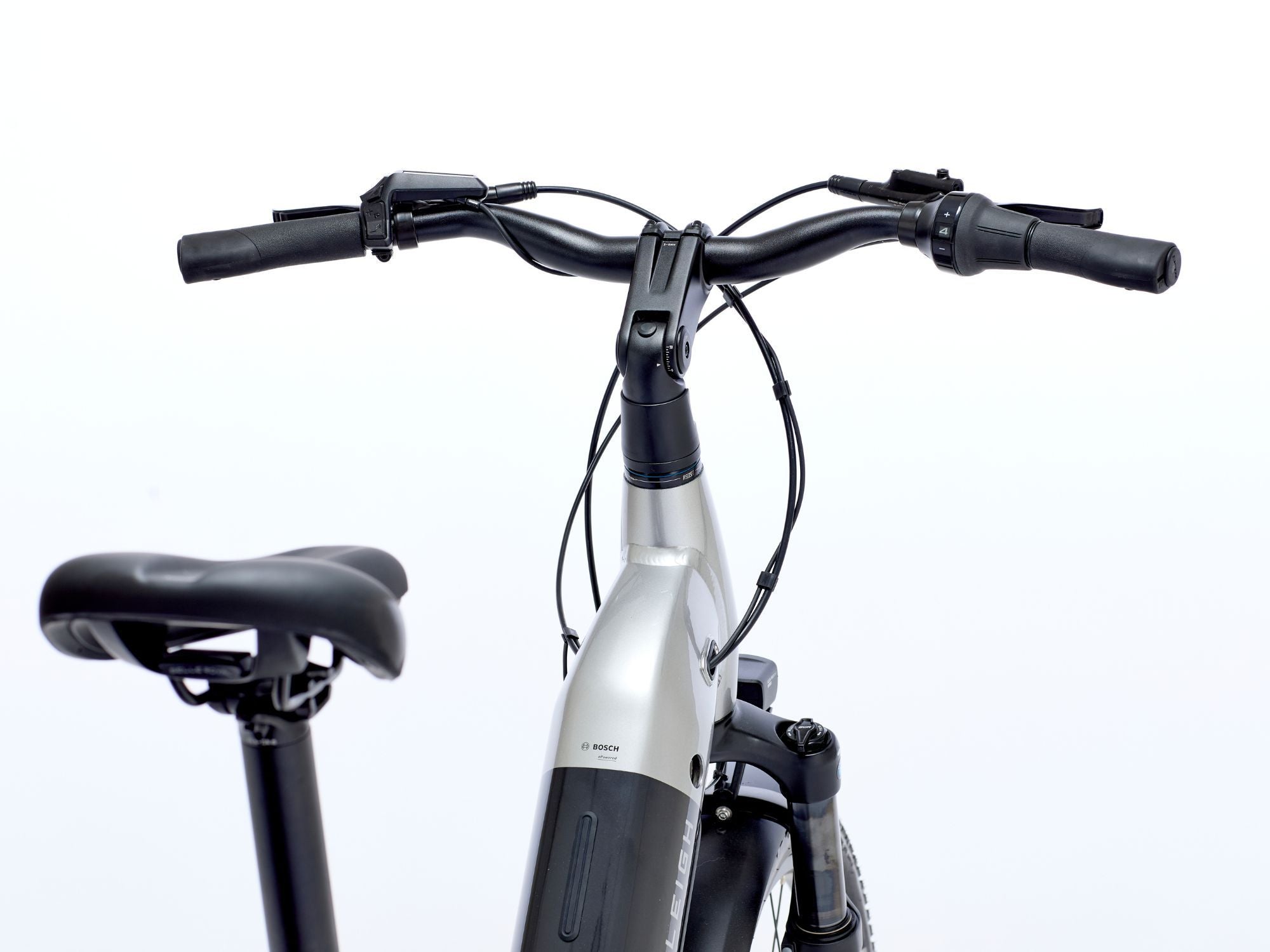

Handlebar: XLC Flat bar JD-TR28AL, Dia. 31.8 mm, L: 640 mm
Pedal: XLC VPE-527 Alloy w/ Reflector

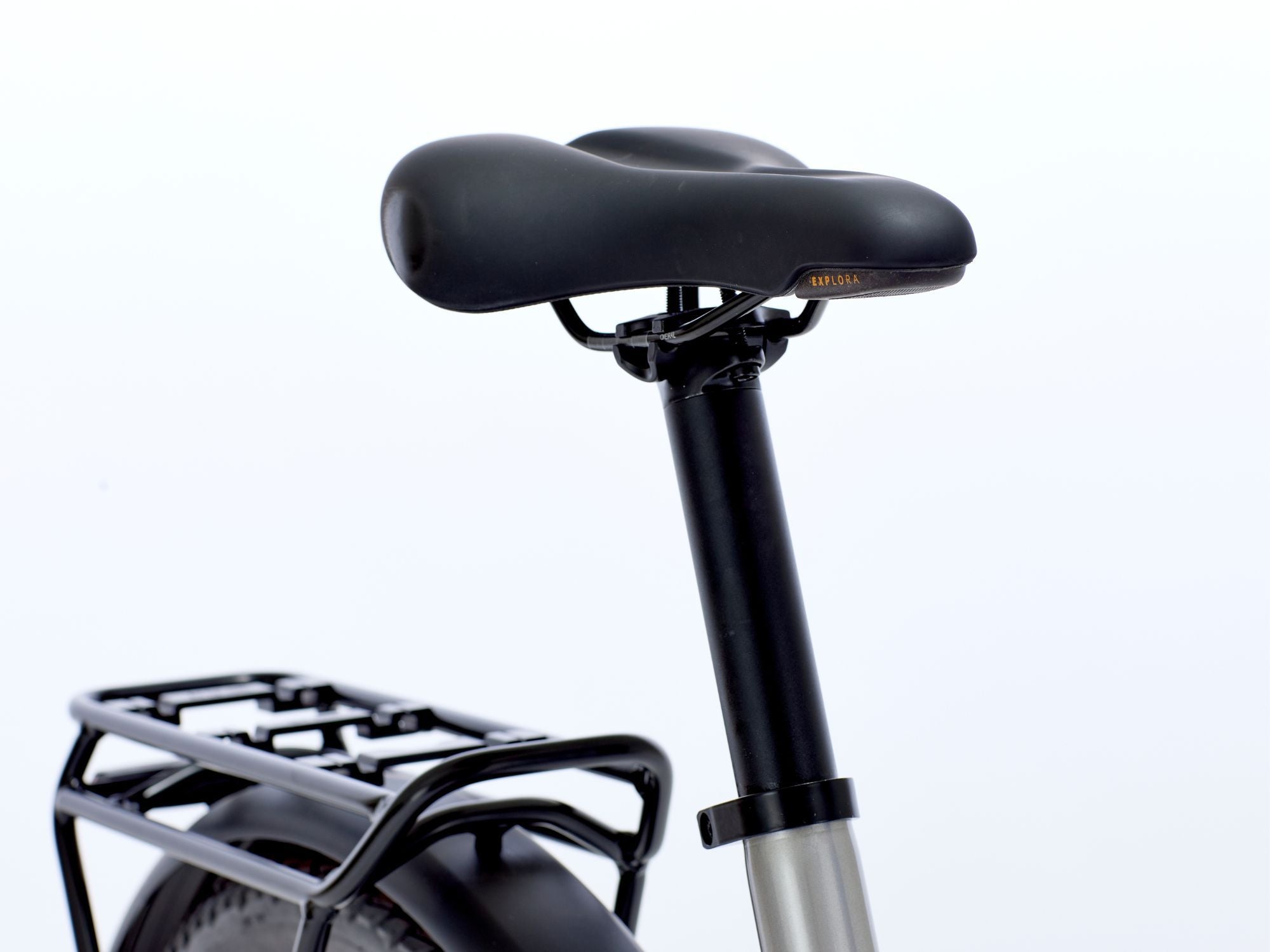

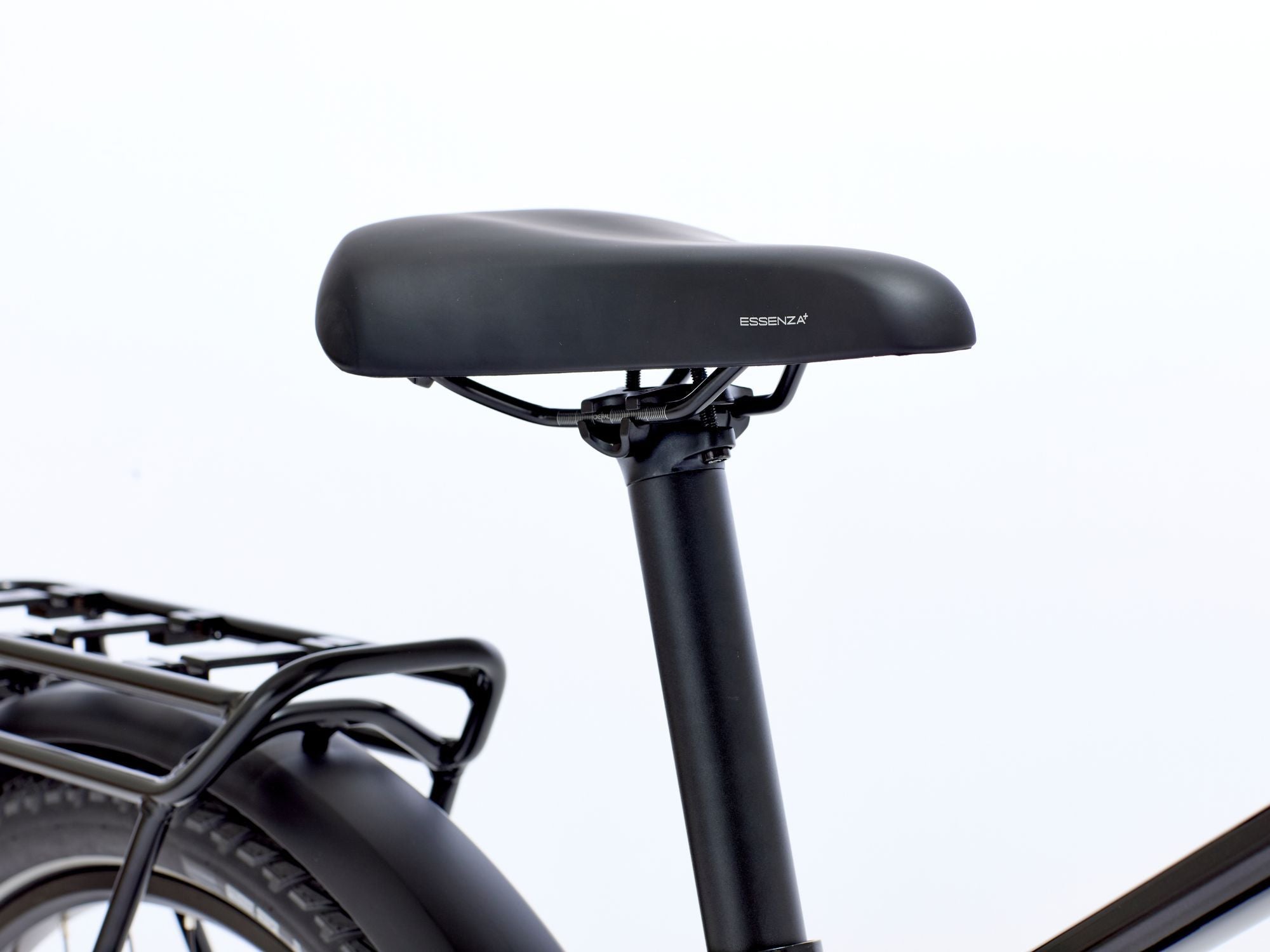

Saddle: Selle Royal Tour Essenza+ A037DRN
Seatpost: XLC Non Suspension SP-R30, Dia. 34.9 mm, L: 300 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Schurmann YAK Disc 25-584 32H 8,5 mm Valve
Tyre: Schwalbe Al Grounder Perf. RaceGuard 60-584
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
