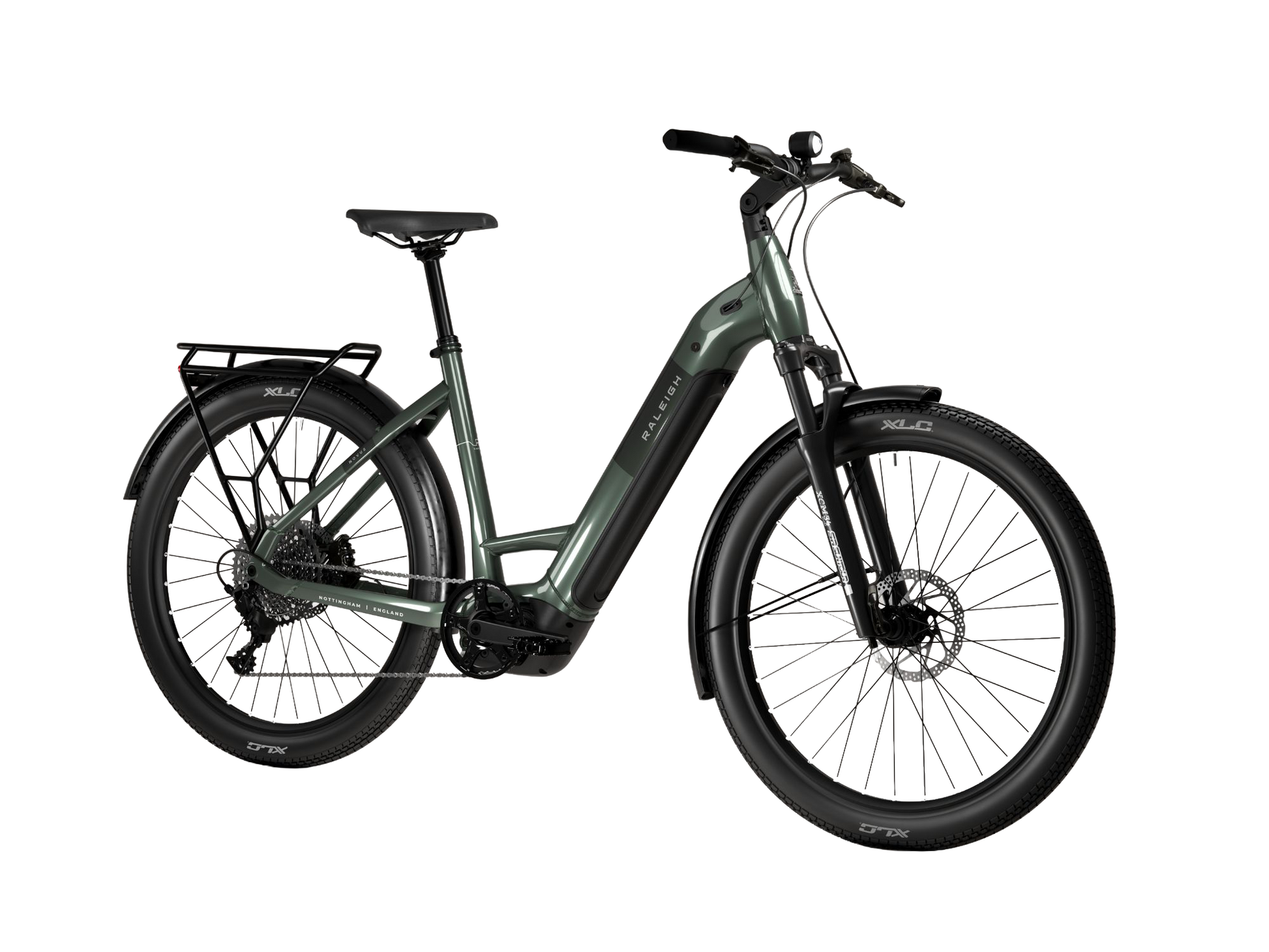

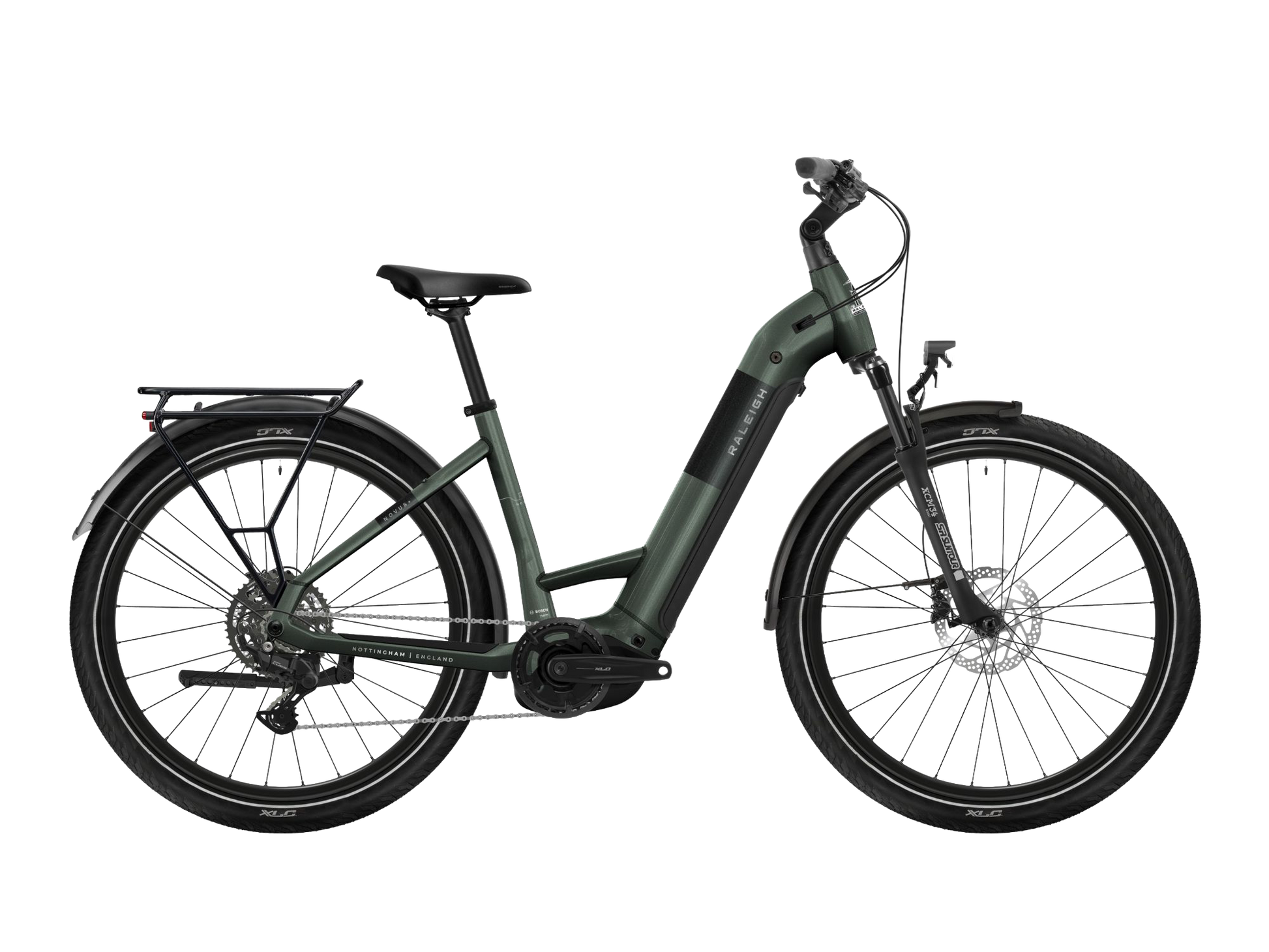

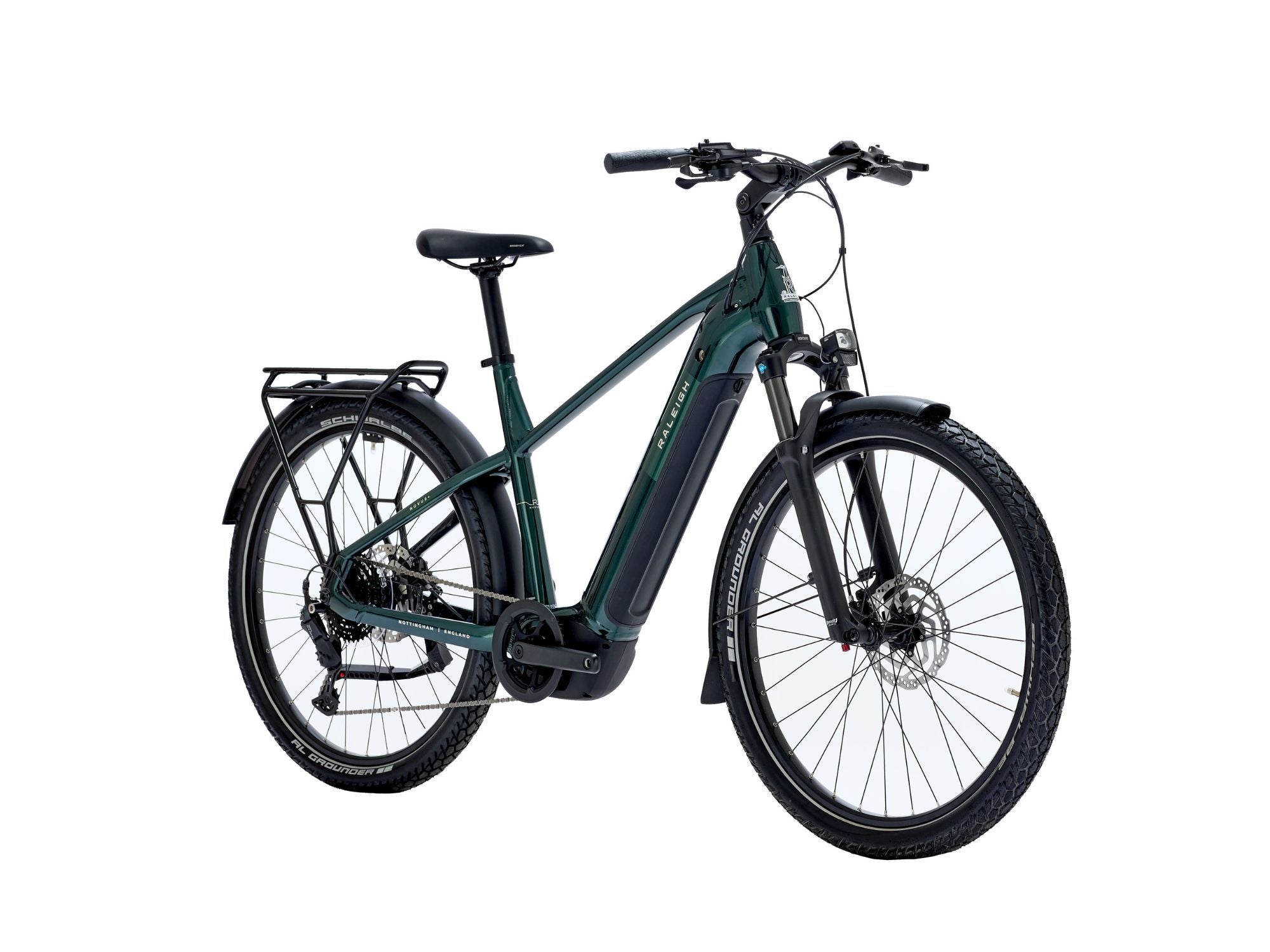

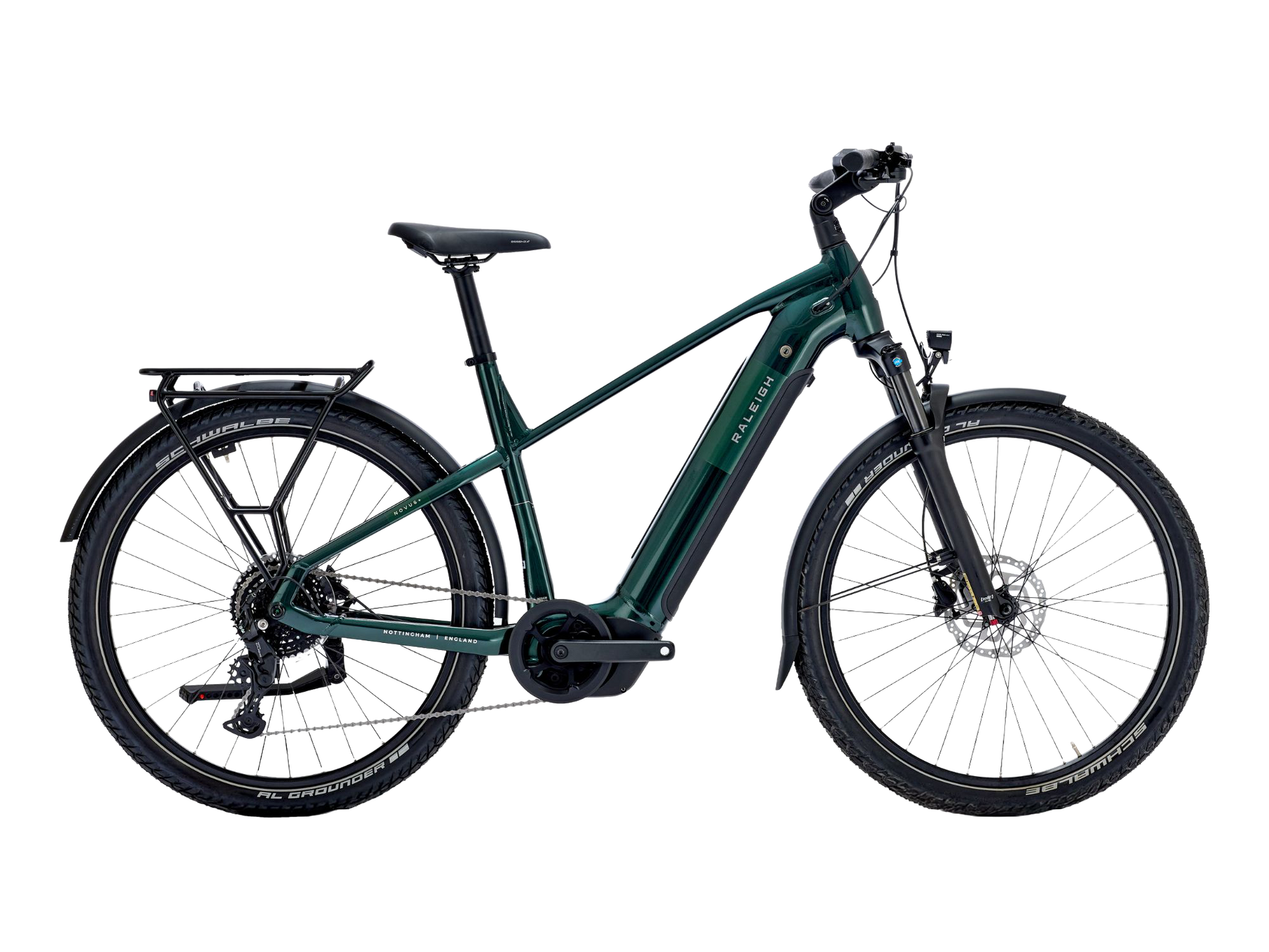

NOVUS PLUS - DERAILLEUR GEAR ELECTRIC BIKE
NOVUS PLUS - DERAILLEUR GEAR ELECTRIC BIKE
Description
More power. More freedom. Novus Plus is for riders who like their weekends uncut - longer routes, wilder trails, no compromises.
An 800wh battery delivers serious range - up to 112 miles of pedal-assisted exploration. The Bosch Performance Line motor keeps everything smooth and responsive, while the derailleur gearing gives you full control on climbs and descents. With off-road tyres, 100mm front suspension and hydraulic disc brakes, it’s ready for whatever track or trail you throw its way.

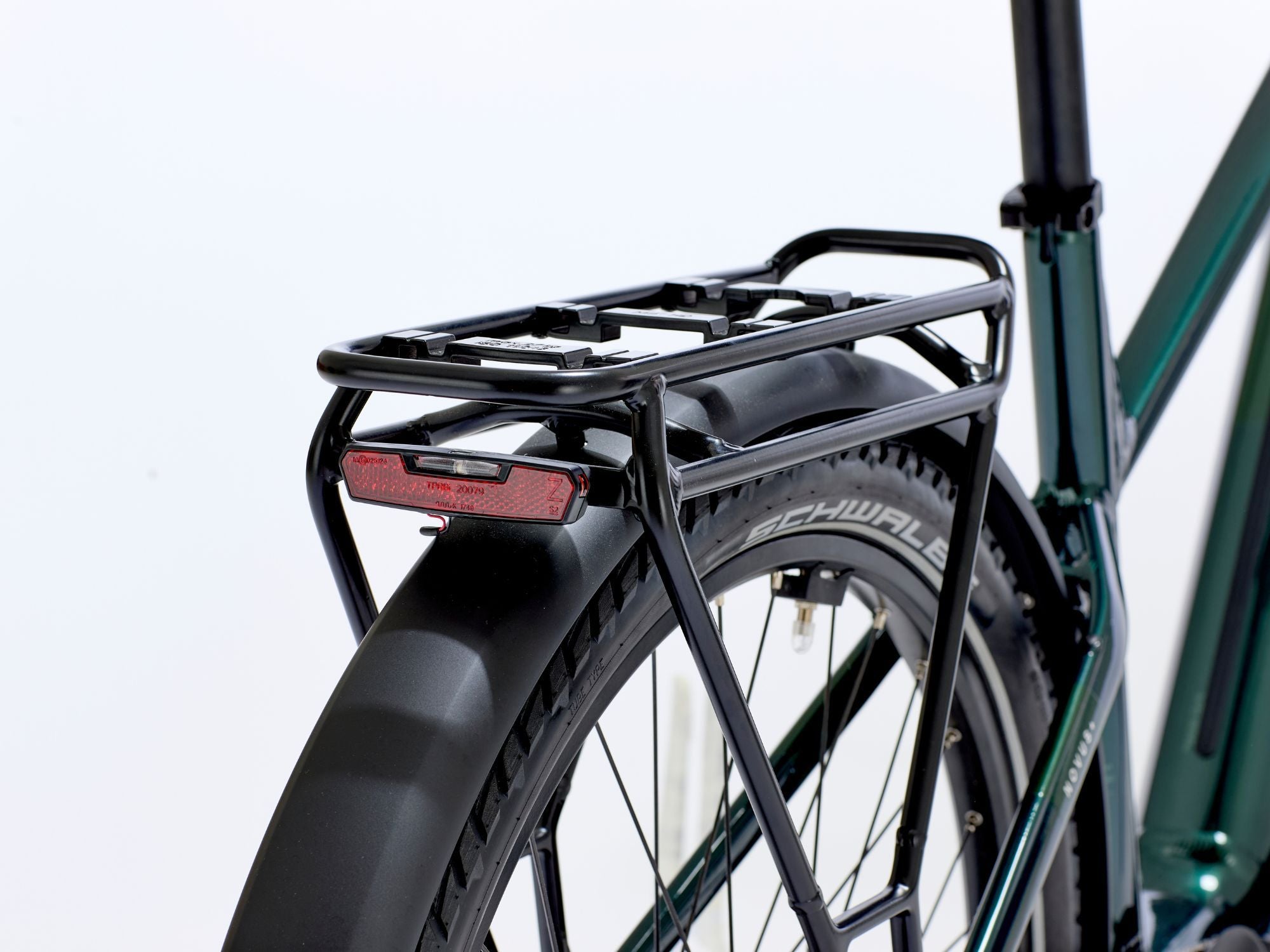

Designed to carry more and go longer, it comes fitted with front and rear mudguards, integrated lights, and a rugged 25kg rear rack. Nothing’s an afterthought — not even comfort. Expect ergonomic grips, a Selle Royal Essenza saddle, and your choice of crossbar or step-through frame.
The Novus Plus is for riders who take the scenic route — and then keep going.
Range Calculator
Use this calculator to better estimate the range you might achieve based on your riding conditions:
(Please check the specification to ensure your select the correct motor and battery. The total travel distance will depend on the capacity of the battery, rider and luggage weight, power mode setting and riding style.)
Important
Please be aware that this bike is regulated in line with existing Electric Power Assisted Cycles regulations. Any modification to the bike will invalidate the guarantee and in particular any modification which increases the power of the motor and/or the top assisted speed of the bike may make the rider liable to prosecution. Excluding statutory obligations Raleigh will not be held responsible for any injuries incurred following any modification to this product.
Key Features

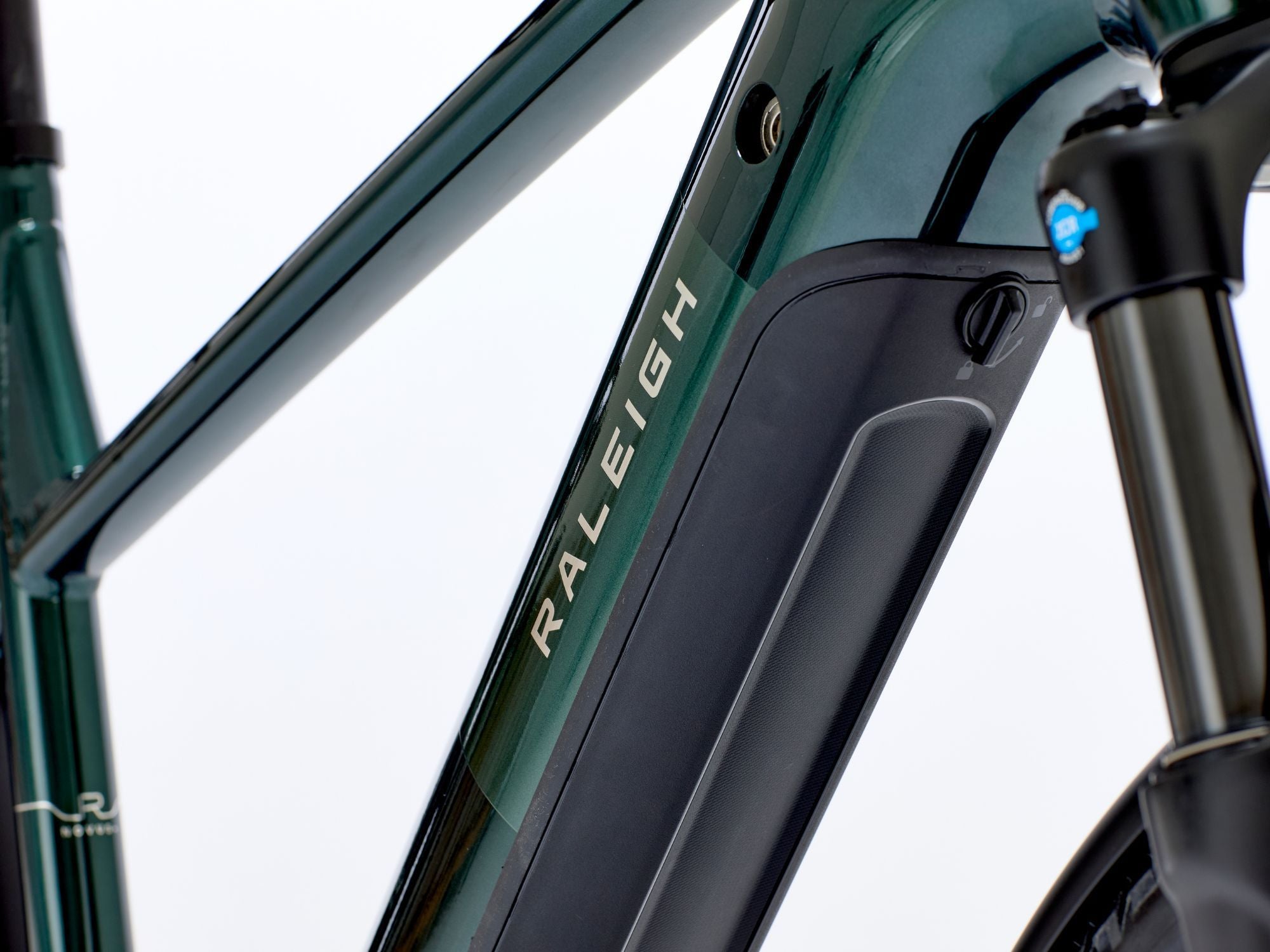

800 Wh Battery
Performance Line Motor
Off-Road Confidence
Specifications
e-System
e-System
Battery: Bosch Li-ION
Charger: Bosch Smart Charger Charger 2A 220-240V
Display: Bosch Purion Kiox 300 + LED Remote
Motor: Bosch Performance Line
Frame
Frame
Frame: LOW Aluminium Low-Step
Modular Rail System: Yes
Maximum loadable weight:
Drive
Drive
Cassette: Shimano Cassette CUES CS-LG300-9, HG
Chain: Shimano Chain CUES CN-LG500 9-11s, LINKGLIDE
Crankset: EC37-F9 ISIS Cranks + CR XLC CR-E15 + Bashring
Derailleur Rear: Shimano Cues CUES RD-U4000-GS 9s, Shadow+
Gear: Shimano Derailleur
Number of gears: 9
Shifter Right: Shimano Triggershift CUES SL-U4000-9R, Rapidfire+
Suspension
Suspension
Front Fork: Suntour XCM34 DS Boost, 100 mm
Rear Travel:
Shock:
Travel:
Components
Components
Front Brake: Shimano Hydraulic Disc brake Altus BR-MT200, 2 pistons, resin pad, 180 mm
Rear Brake: Shimano Hydraulic Disc brake Altus BR-MT200, 2 pistons, resin pad, 180 mm
Headlight: AXA Via E-bike System NXT 45 E-Bike, 45 Lux, 5-12V
Rear Light: AXA Via E-bike System Juno E-Bike, 6-12V
Brake light: No
Grips: XLC

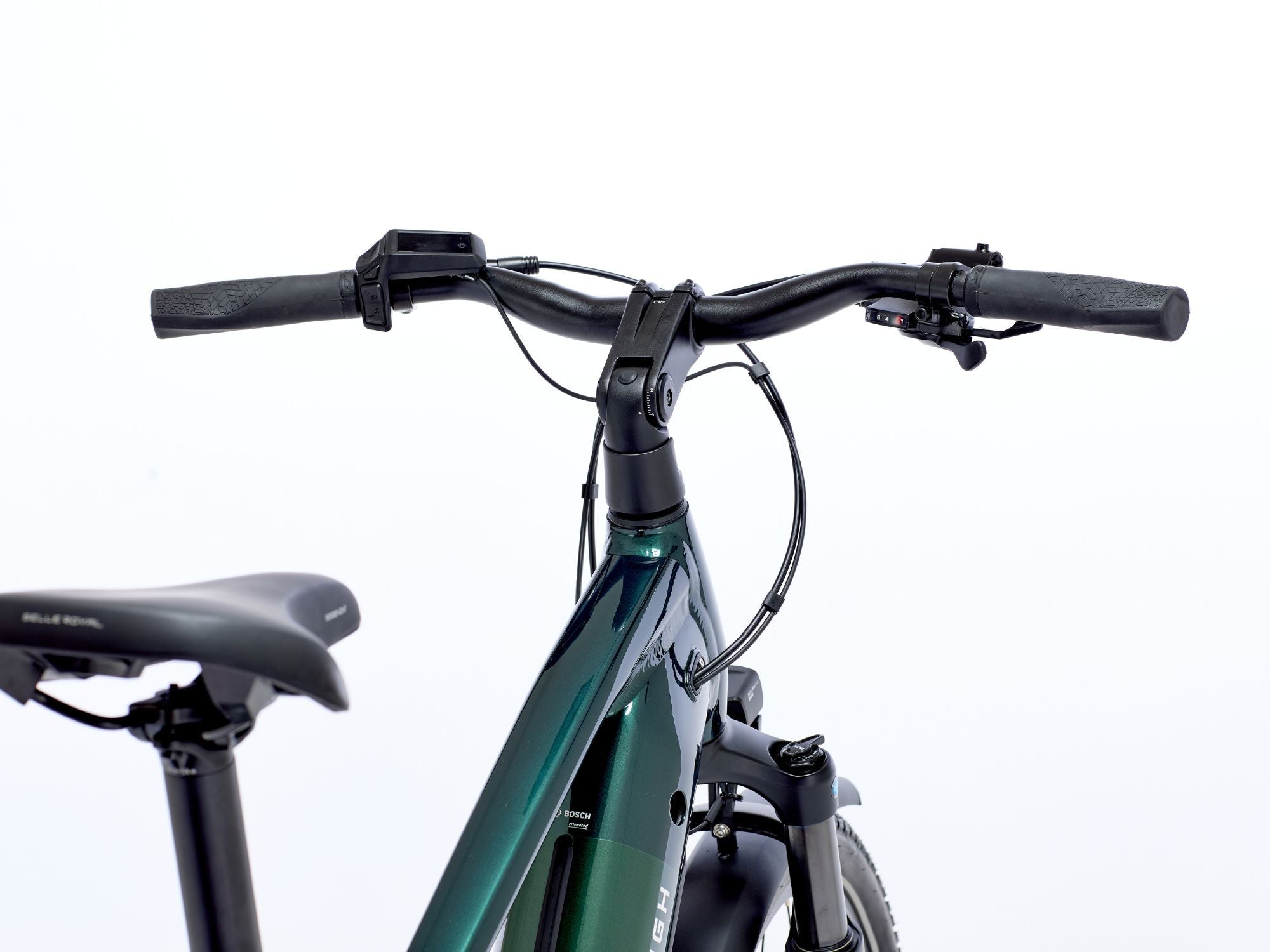

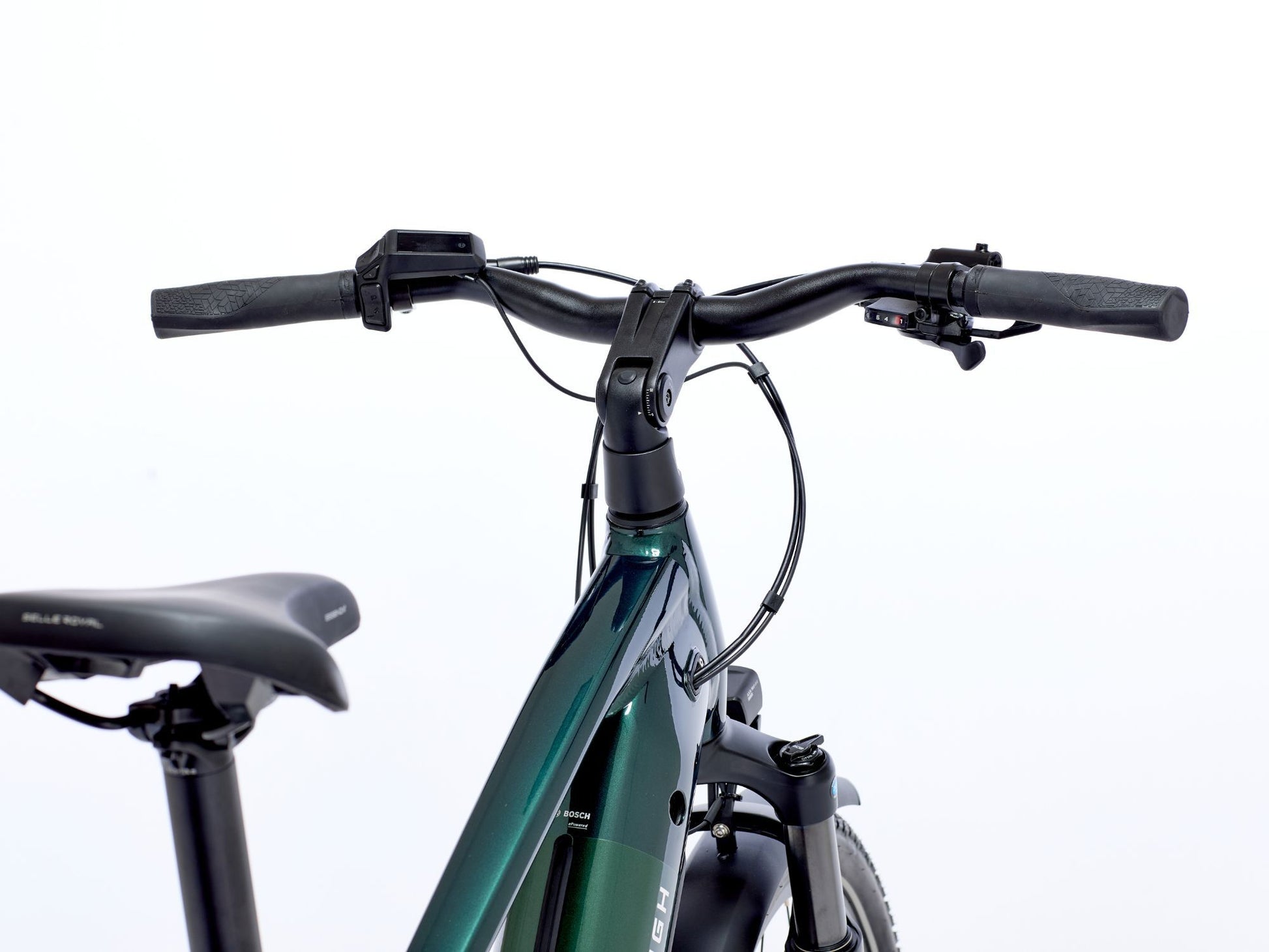

Handlebar: XLC Flat bar JD-TR28AL, Dia. 31.8 mm, L: 640 mm
Pedal: XLC VPE-527 Alloy w/ Reflector

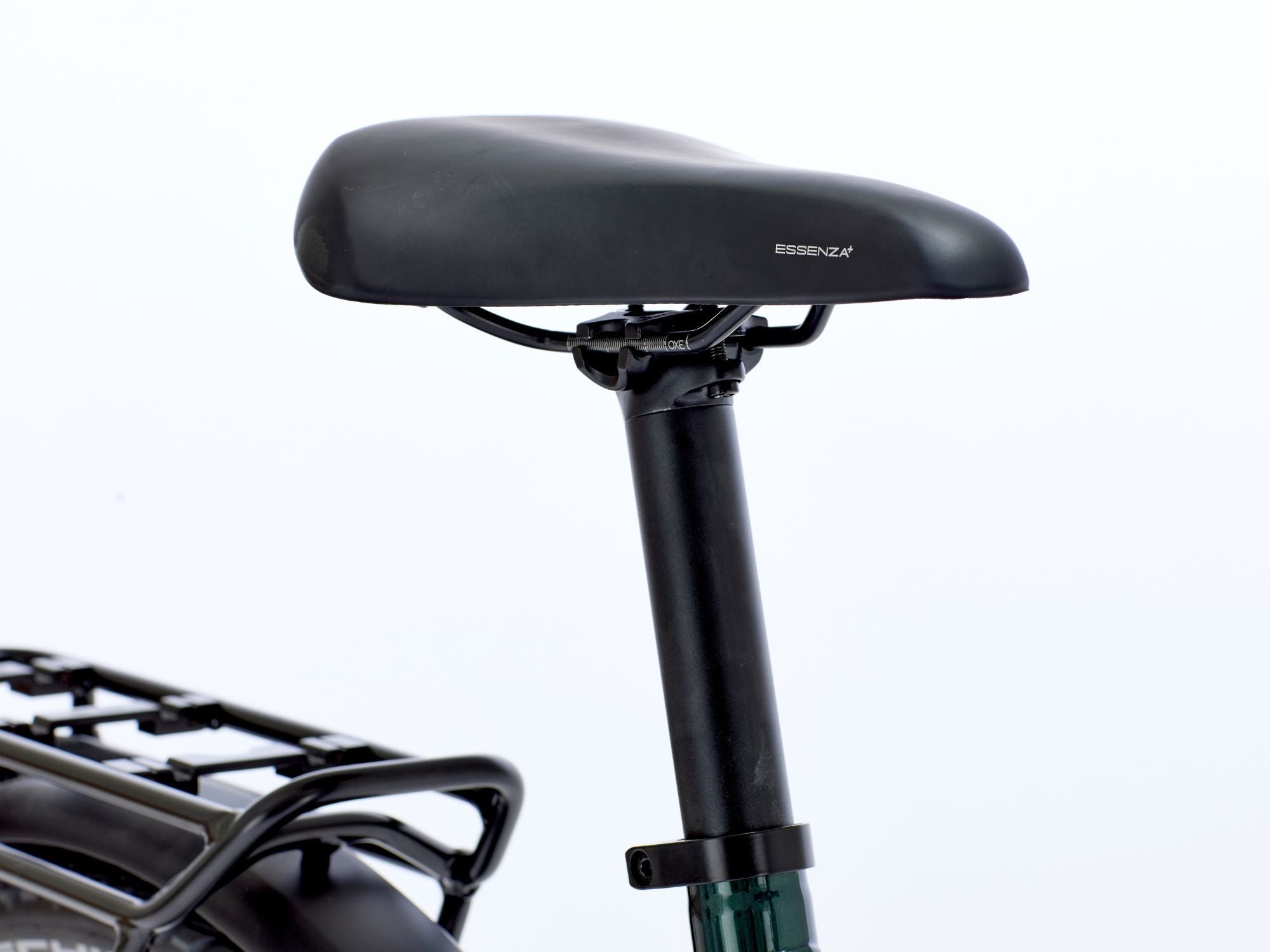

Saddle: Selle Royal Tour Essenza+ A037DRN
Seatpost: XLC Non Suspension SP-R30, Dia. 34.9 mm, L: 300 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Schurmann YAK Disc 25-584 32H 8,5 mm Valve
Tyre: Schwalbe Al Grounder Perf. RaceGuard 60-584
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
