Description

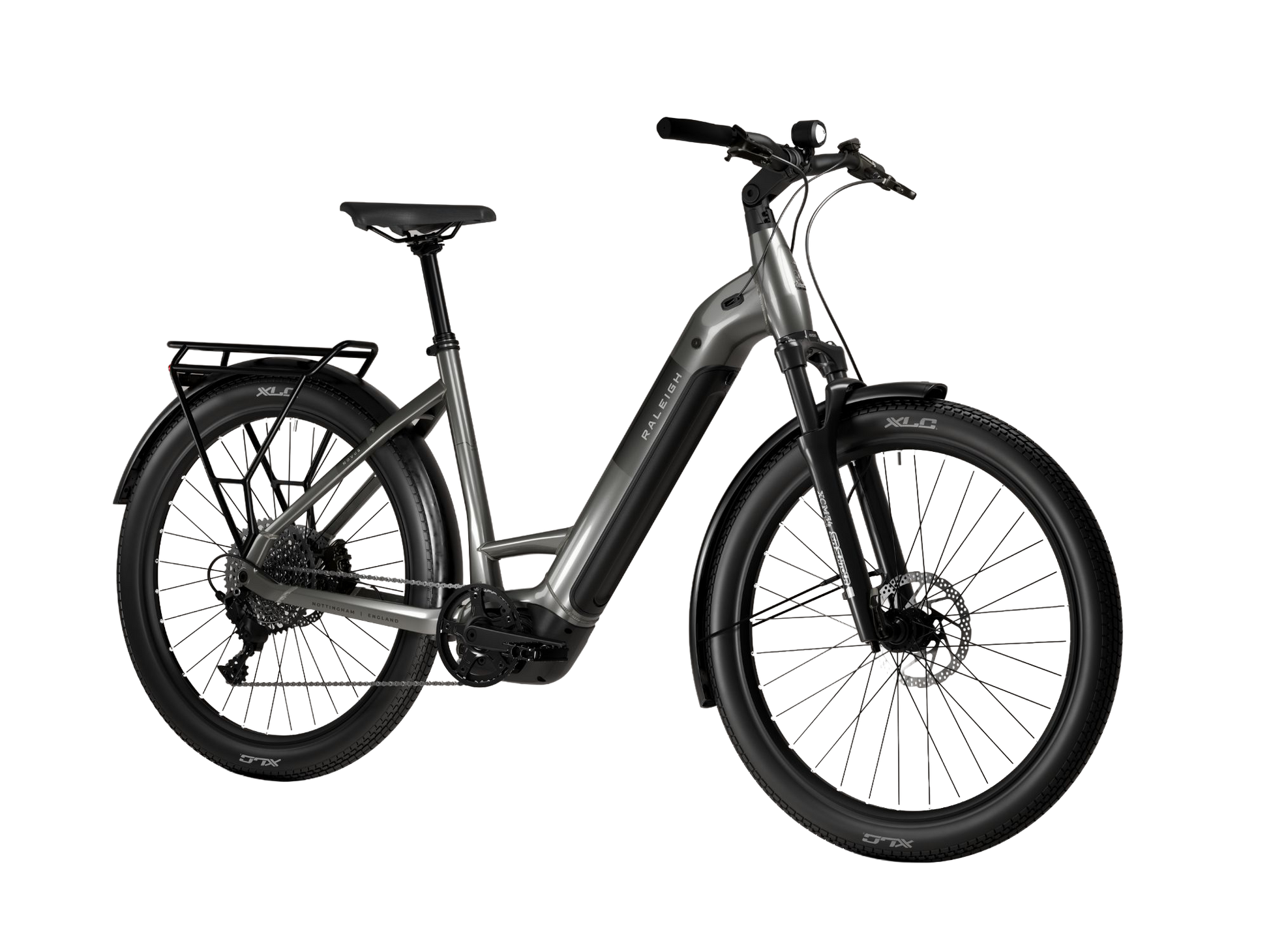

For those who glide through the city with ease but crave something a little wilder come the weekend, meet Novus. Built for the urban jungle but ready to roam free, this is the ebike that takes you far beyond your morning coffee run.

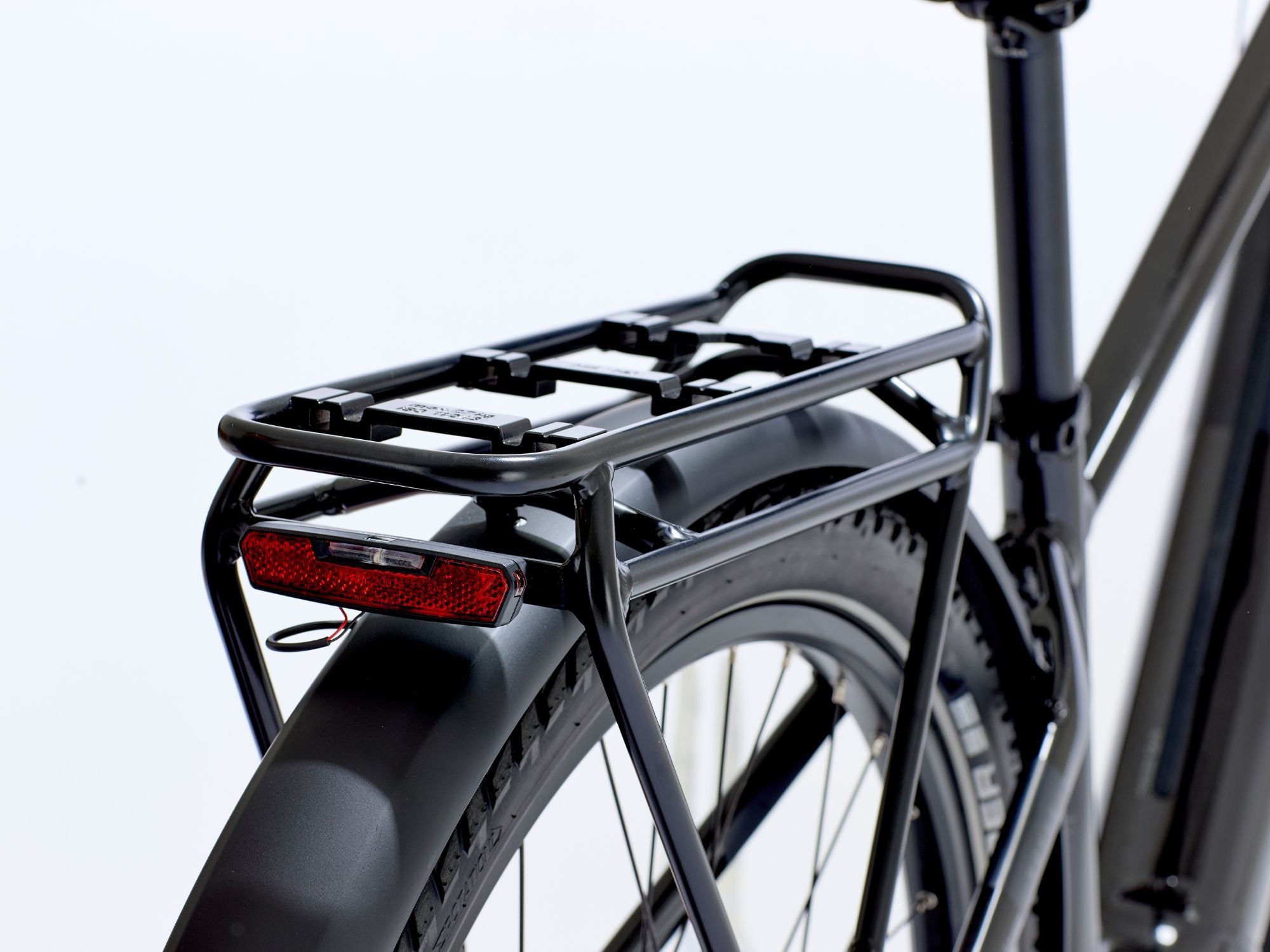

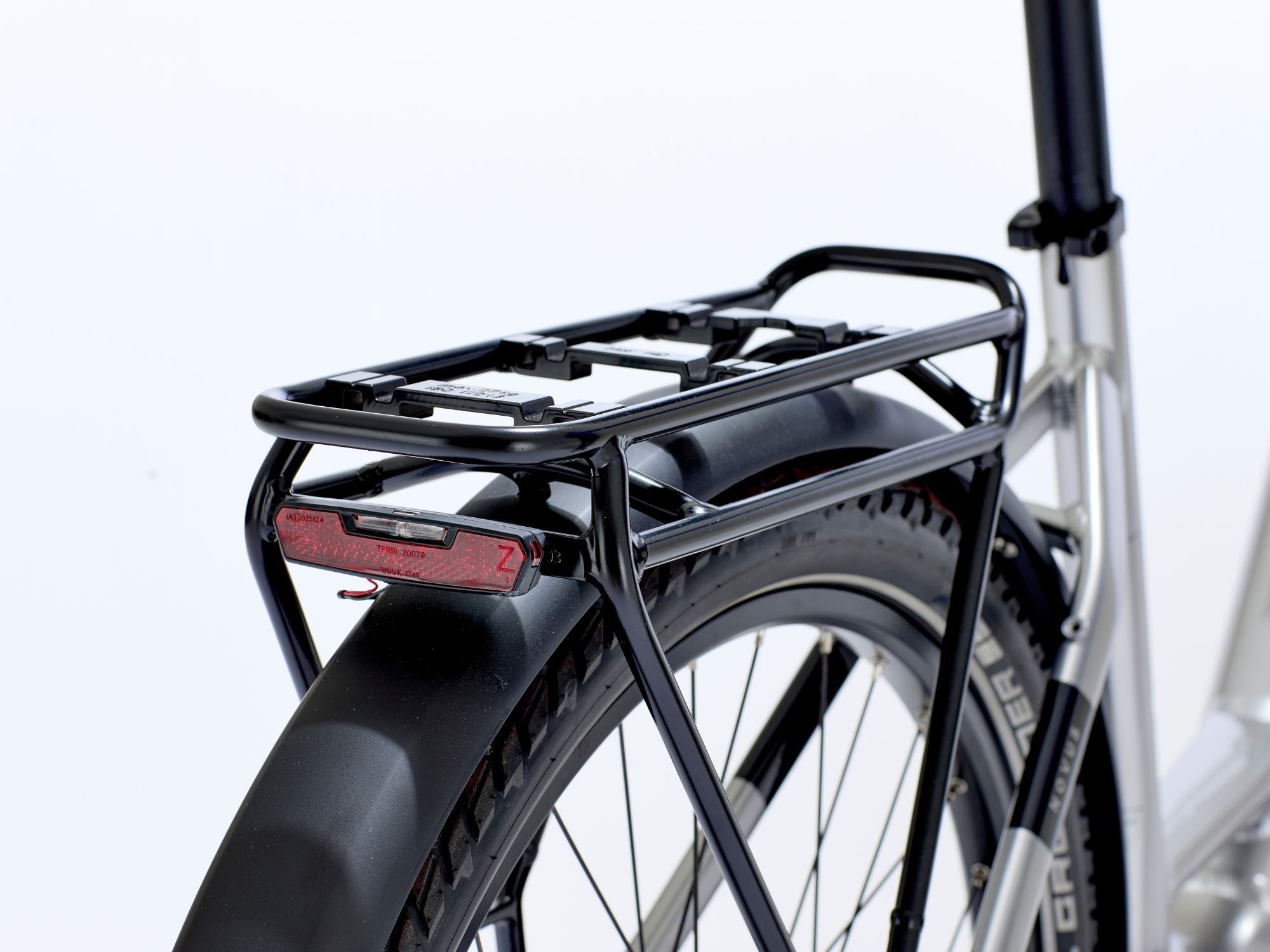

With a Bosch Performance Line motor and a generous 600wh battery, Novus delivers up to 83 miles of seamless, assisted riding. Off-road tyres and a front suspension fork with 100mm travel shrug off potholes and gravel tracks alike. Mudguards, lights, and a 25kg rear rack handle the practicalities, so you don’t have to.

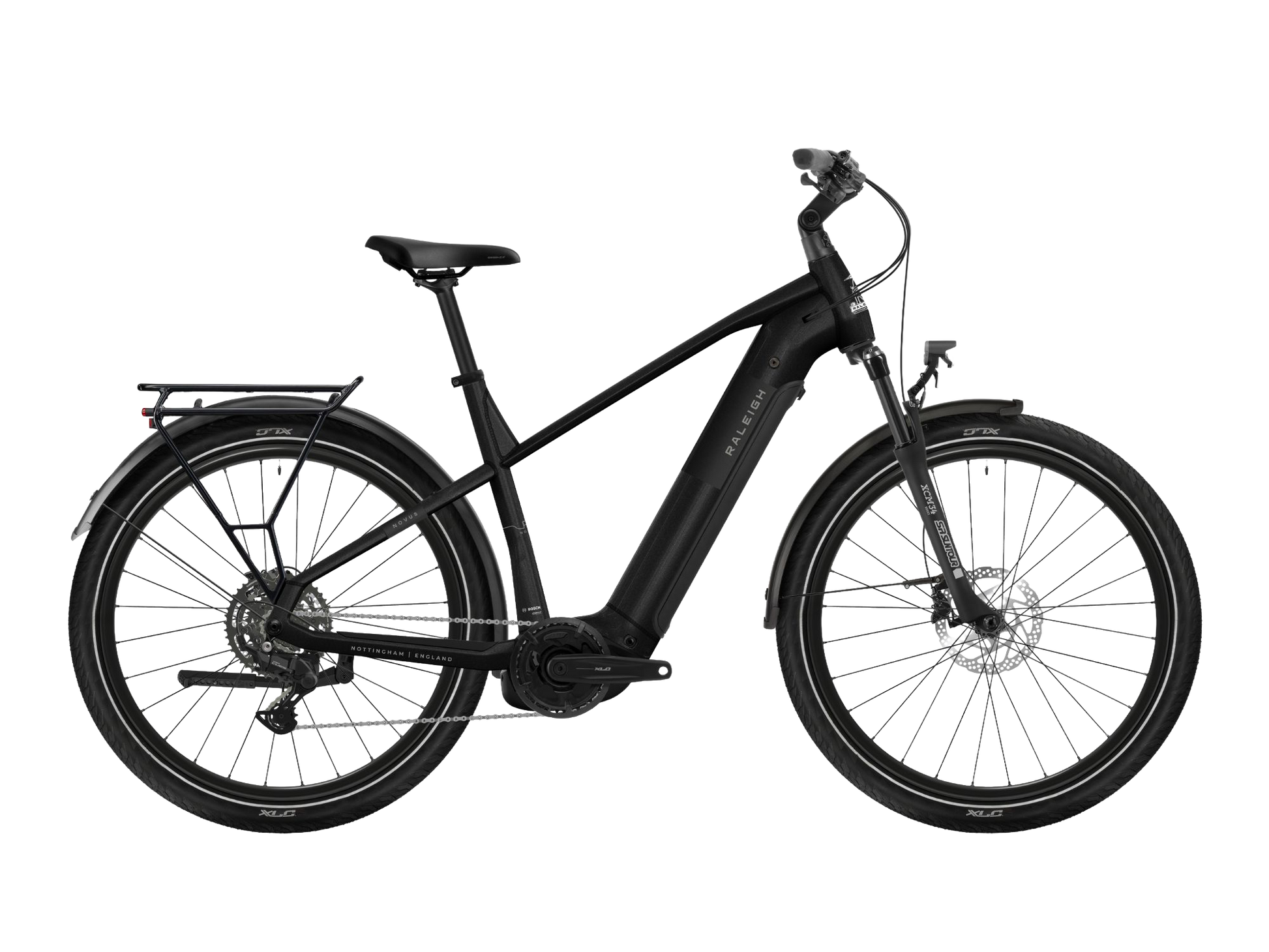

The details are considered: comfort grips, a Selle Royal Essenza saddle, and your choice of crossbar or step-through frame. Whether you’re loading up for a countryside ramble or just cutting through traffic, it’s a ride that makes light work of heavy miles.
In a world of routine, Novus is your elegant excuse to break it. No noise, no fuss – just pure, quiet capability.
Range Calculator
Use this calculator to better estimate the range you might achieve based on your riding conditions:
(Please check the specification to ensure your select the correct motor and battery. The total travel distance will depend on the capacity of the battery, rider and luggage weight, power mode setting and riding style.)
Important
Please be aware that this bike is regulated in line with existing Electric Power Assisted Cycles regulations. Any modification to the bike will invalidate the guarantee and in particular any modification which increases the power of the motor and/or the top assisted speed of the bike may make the rider liable to prosecution. Excluding statutory obligations Raleigh will not be held responsible for any injuries incurred following any modification to this product.
Key Features
600 Wh Battery
Performance Line Motor
Off-Road Confidence
Specifications
e-System
e-System

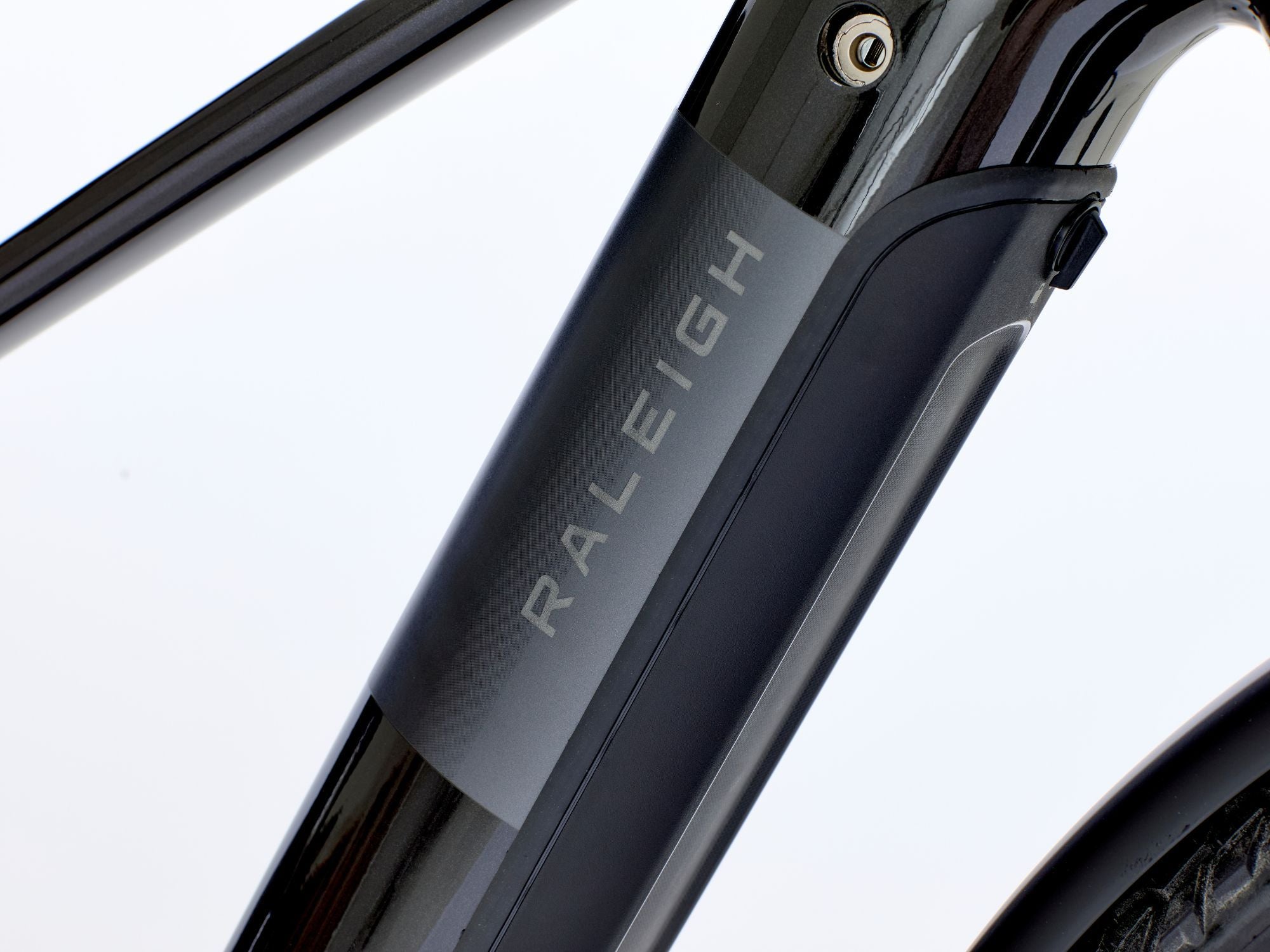

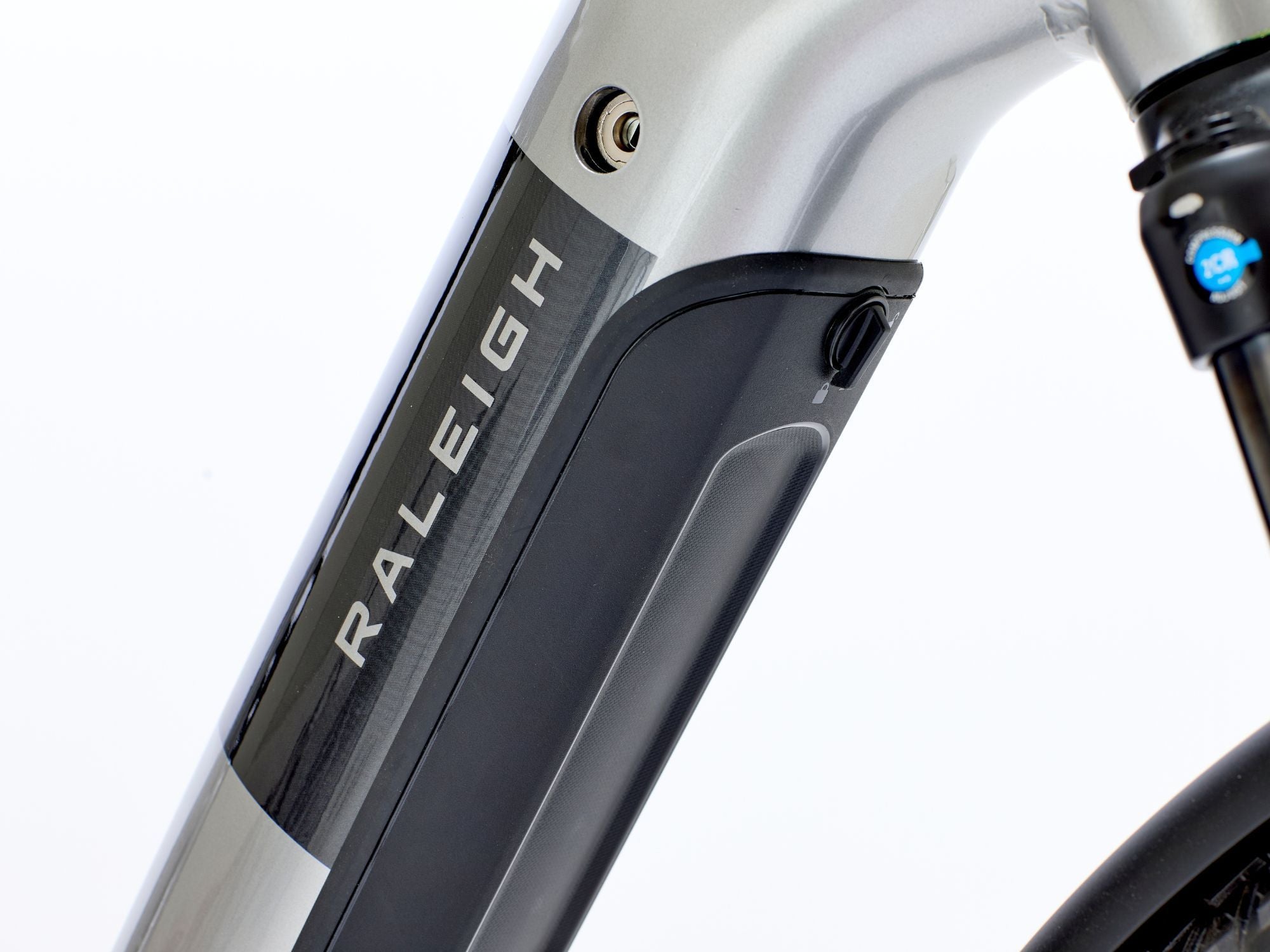

Battery: Bosch Li-ION
Charger: Bosch Smart Charger Charger 2A 220-240V
Display: Bosch Purion Purion 200
Motor: Bosch Performance Line

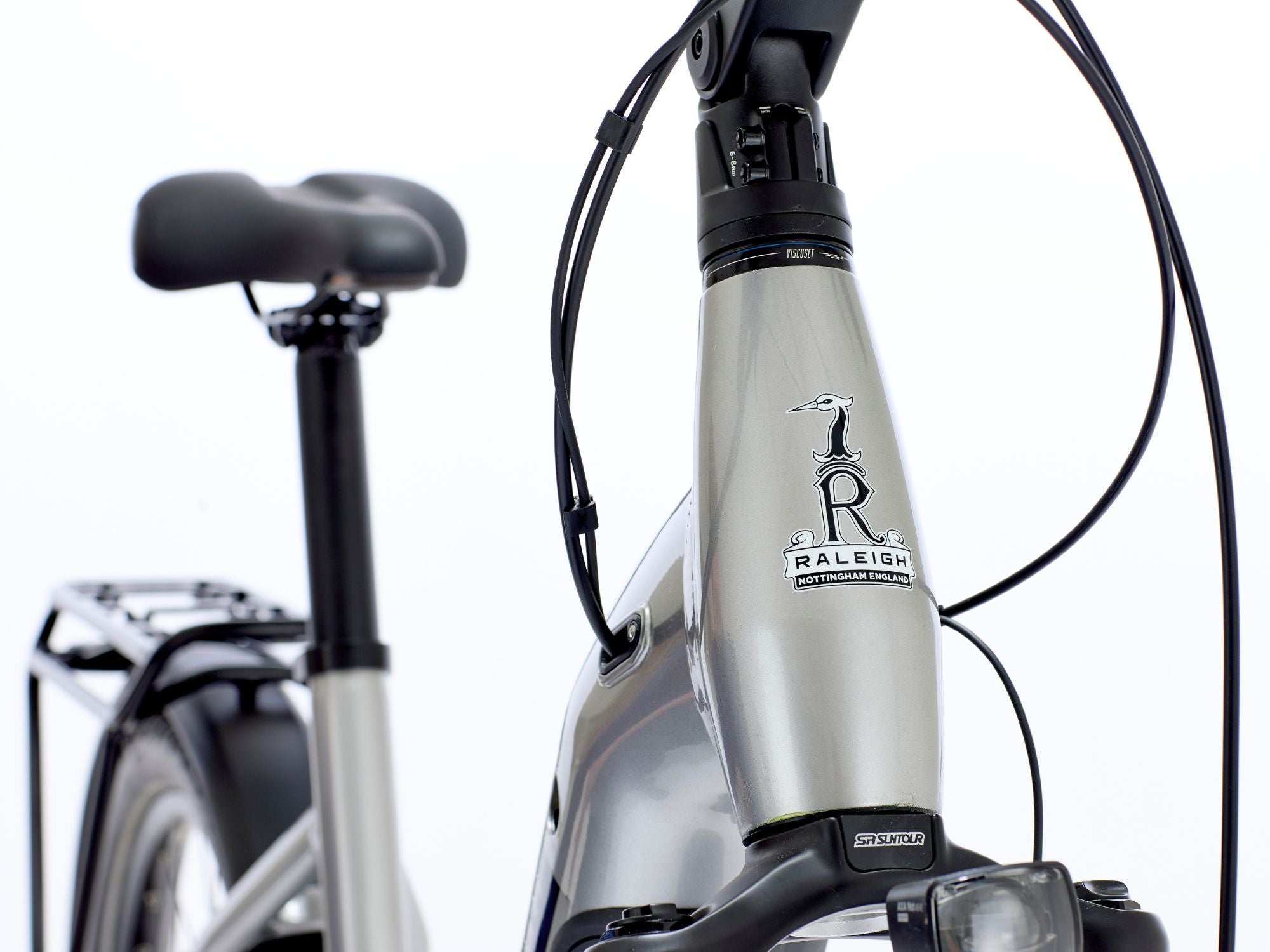

Frame
Frame

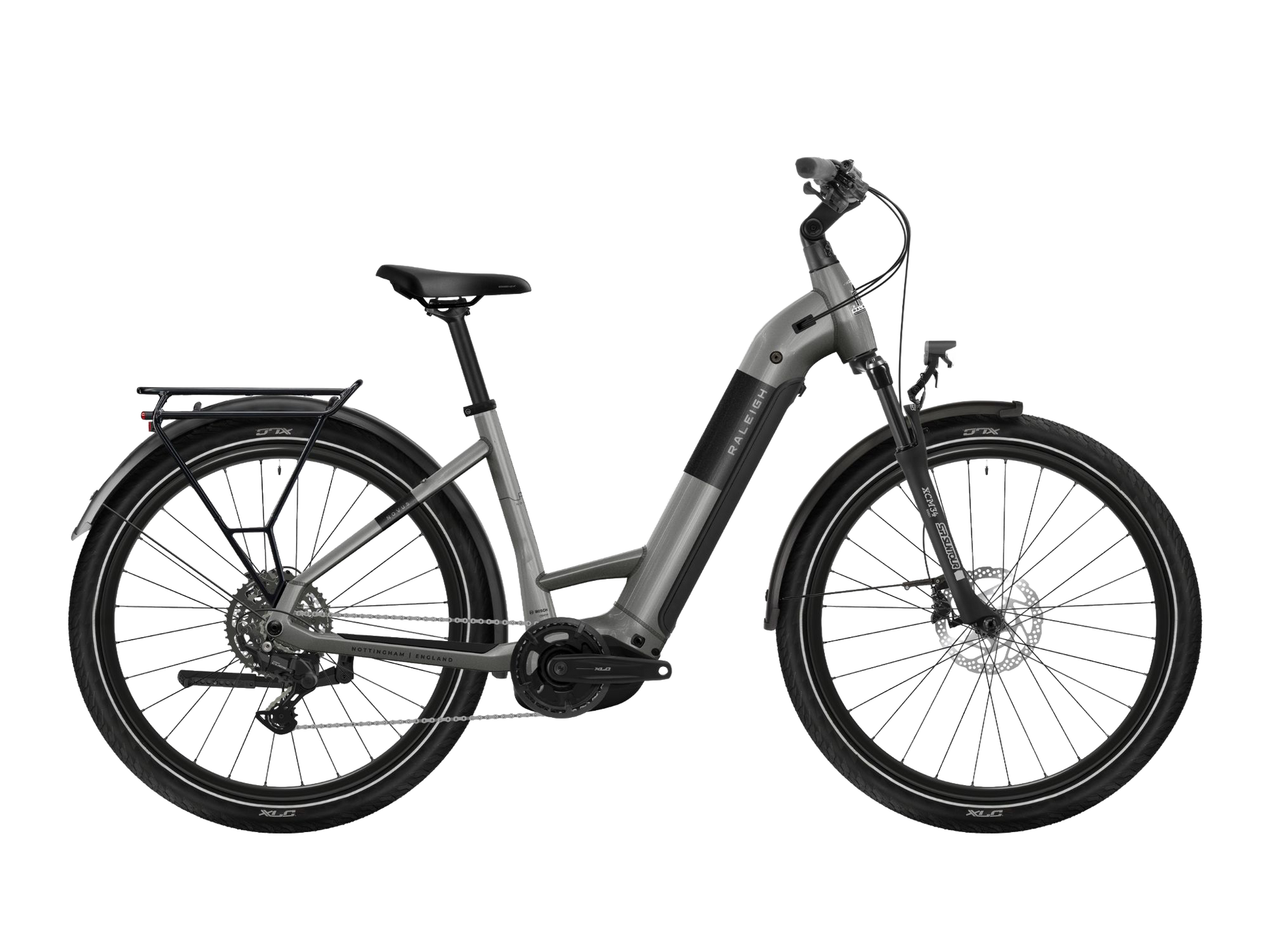

Frame: LOW Aluminium Low-Step
Modular Rail System: Yes
Maximum loadable weight:
Drive
Drive
Cassette: Shimano Cassette CUES CS-LG300-9, HG
Chain: Shimano Chain CUES CN-LG500 9-11s, LINKGLIDE
Crankset: EC37-F9 ISIS Cranks + CR XLC CR-E15 + Bashring
Derailleur Rear: Shimano Cues CUES RD-U4000-GS 9s, Shadow+
Gear: Shimano Derailleur
Number of gears: 9
Shifter Right: Shimano Triggershift CUES SL-U4000-9R, Rapidfire+
Suspension
Suspension
Front Fork: Suntour XCM34 DS Boost, 100 mm
Rear Travel:
Shock:
Travel:
Components
Components
Front Brake: Shimano Hydraulic Disc brake Altus BR-MT200, 2 pistons, resin pad, 180 mm
Rear Brake: Shimano Hydraulic Disc brake Altus BR-MT200, 2 pistons, resin pad, 180 mm

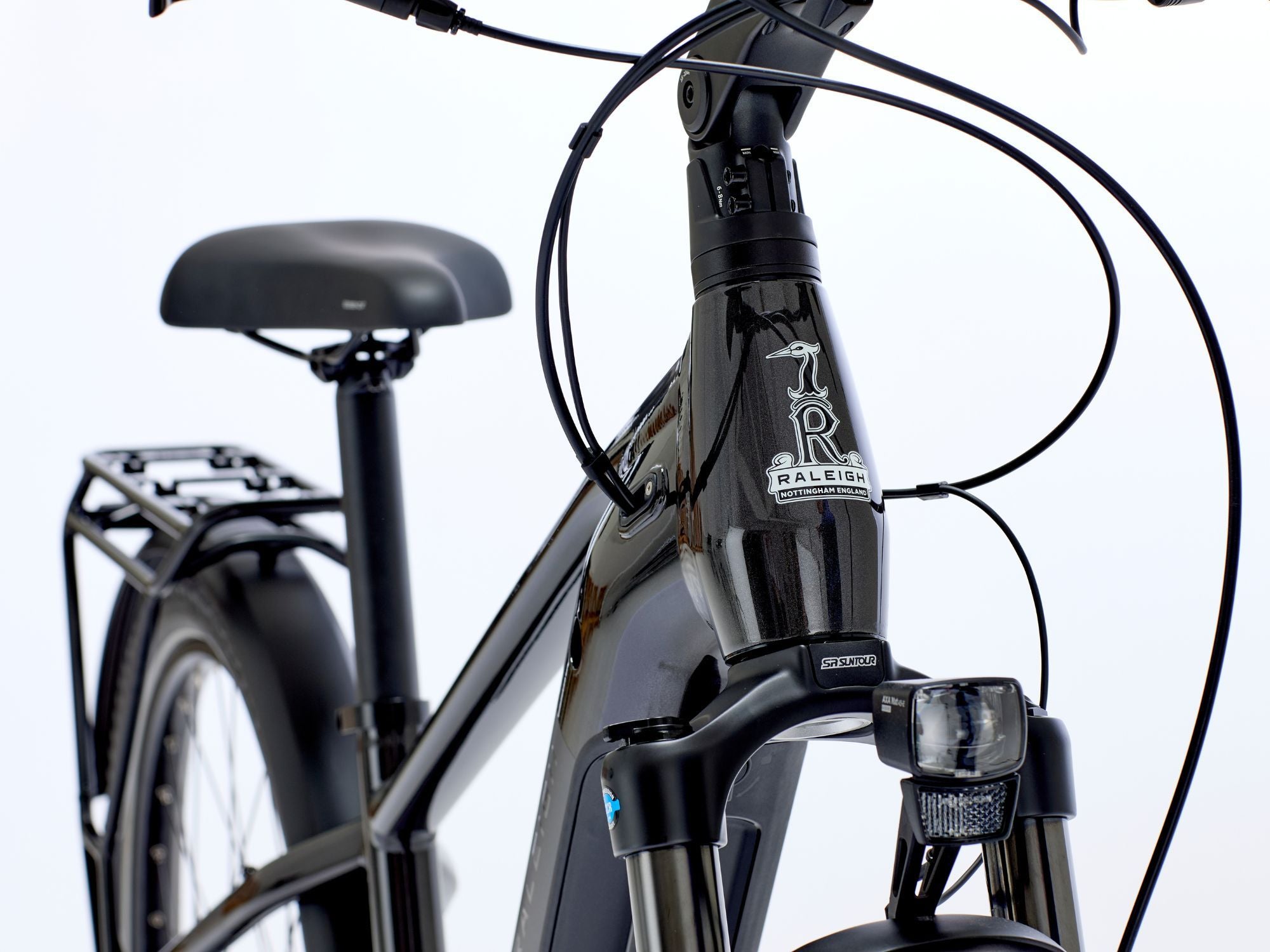

Headlight: AXA Via E-bike System NXT 45 E-Bike, 45 Lux, 5-12V
Rear Light: AXA Via E-bike System Juno E-Bike, 6-12V
Brake light: No
Grips: XLC

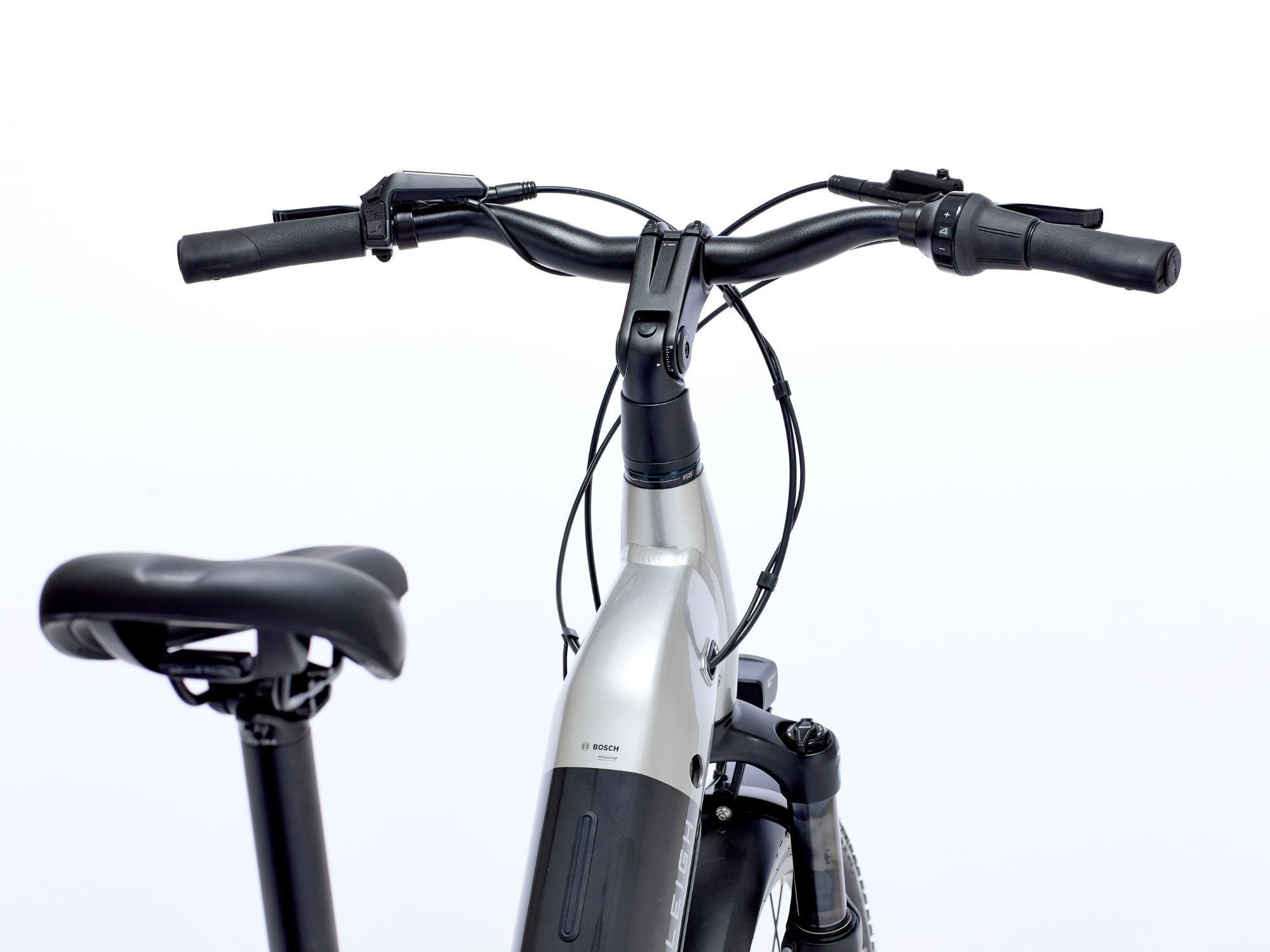

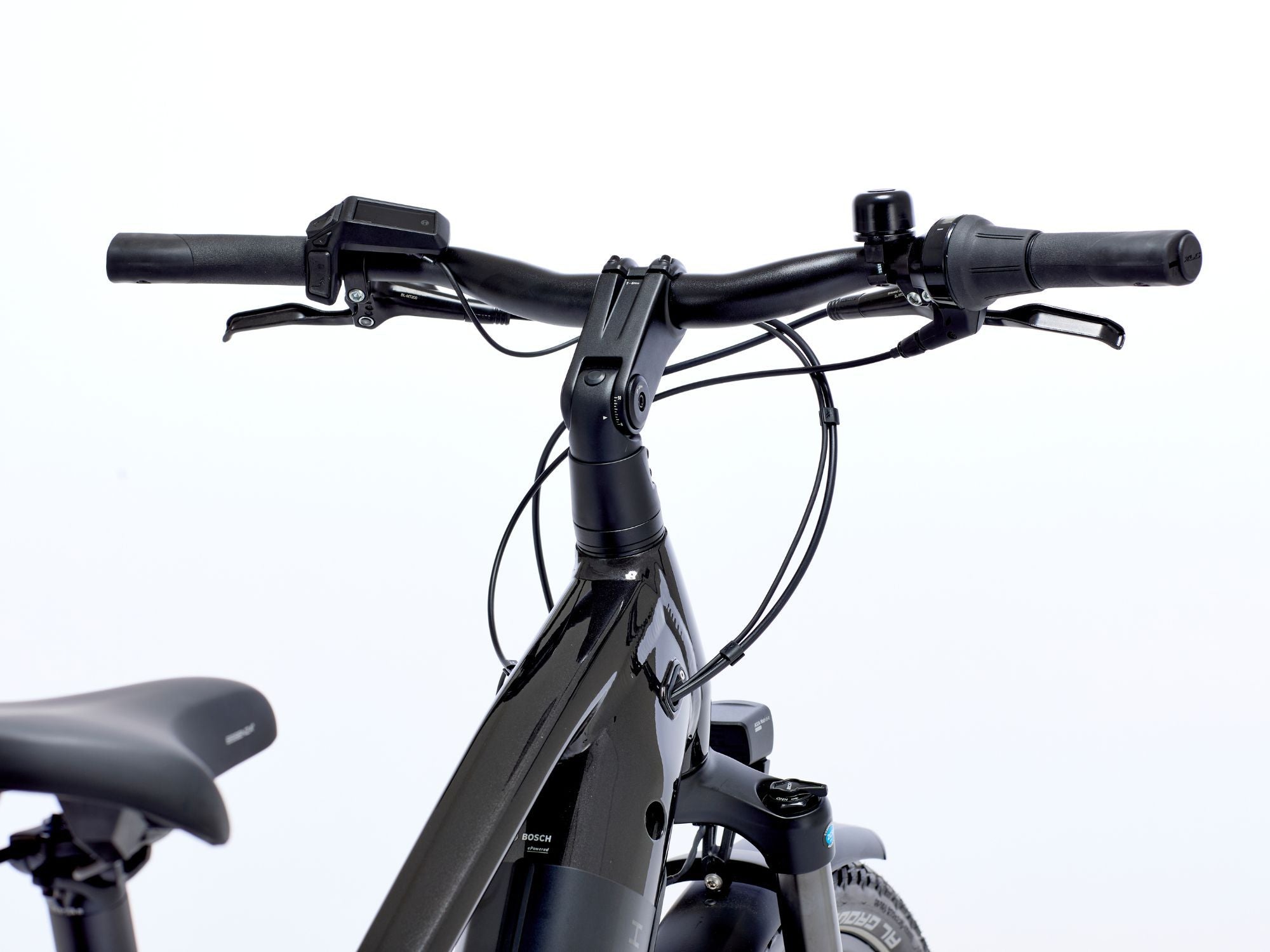

Handlebar: XLC Flat bar JD-TR28AL, Dia. 31.8 mm, L: 640 mm
Pedal: XLC VPE-527 Alloy w/ Reflector

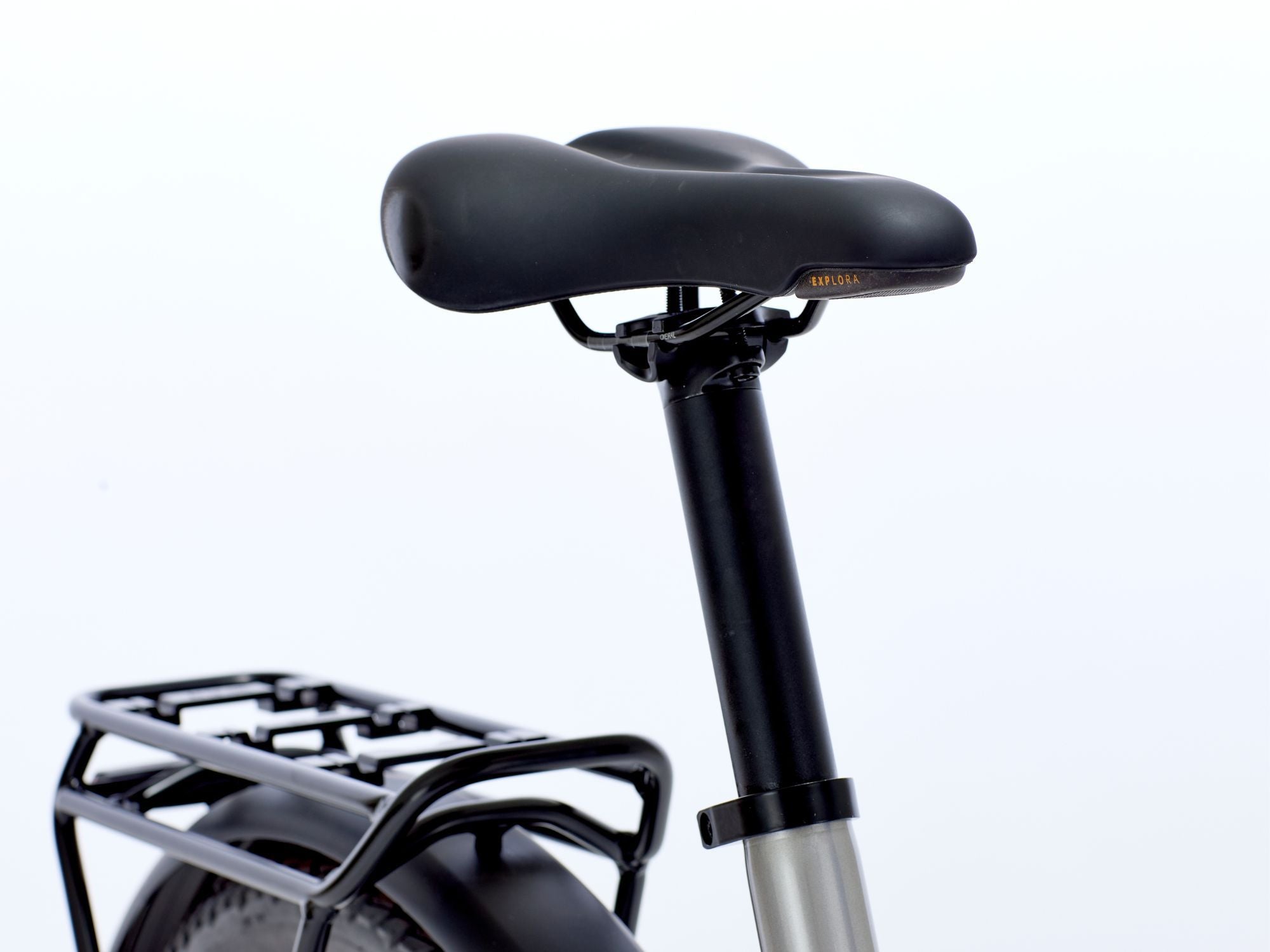

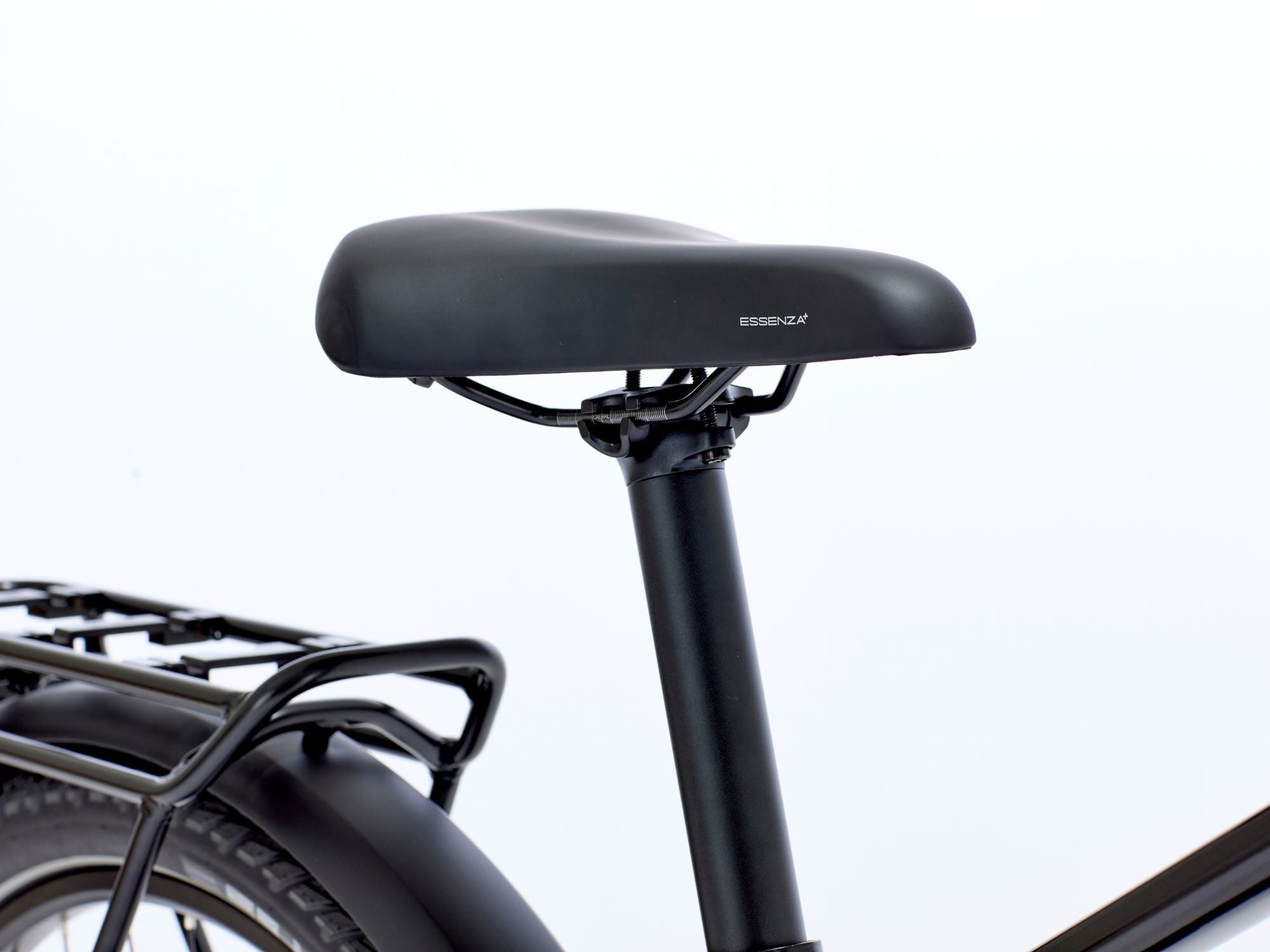

Saddle: Selle Royal Tour Essenza+ A037DRN
Seatpost: XLC Non Suspension SP-R30, Dia. 34.9 mm, L: 300 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Schurmann YAK Disc 25-584 32H 8,5 mm Valve
Tyre: Schwalbe Al Grounder Perf. RaceGuard 60-584
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
