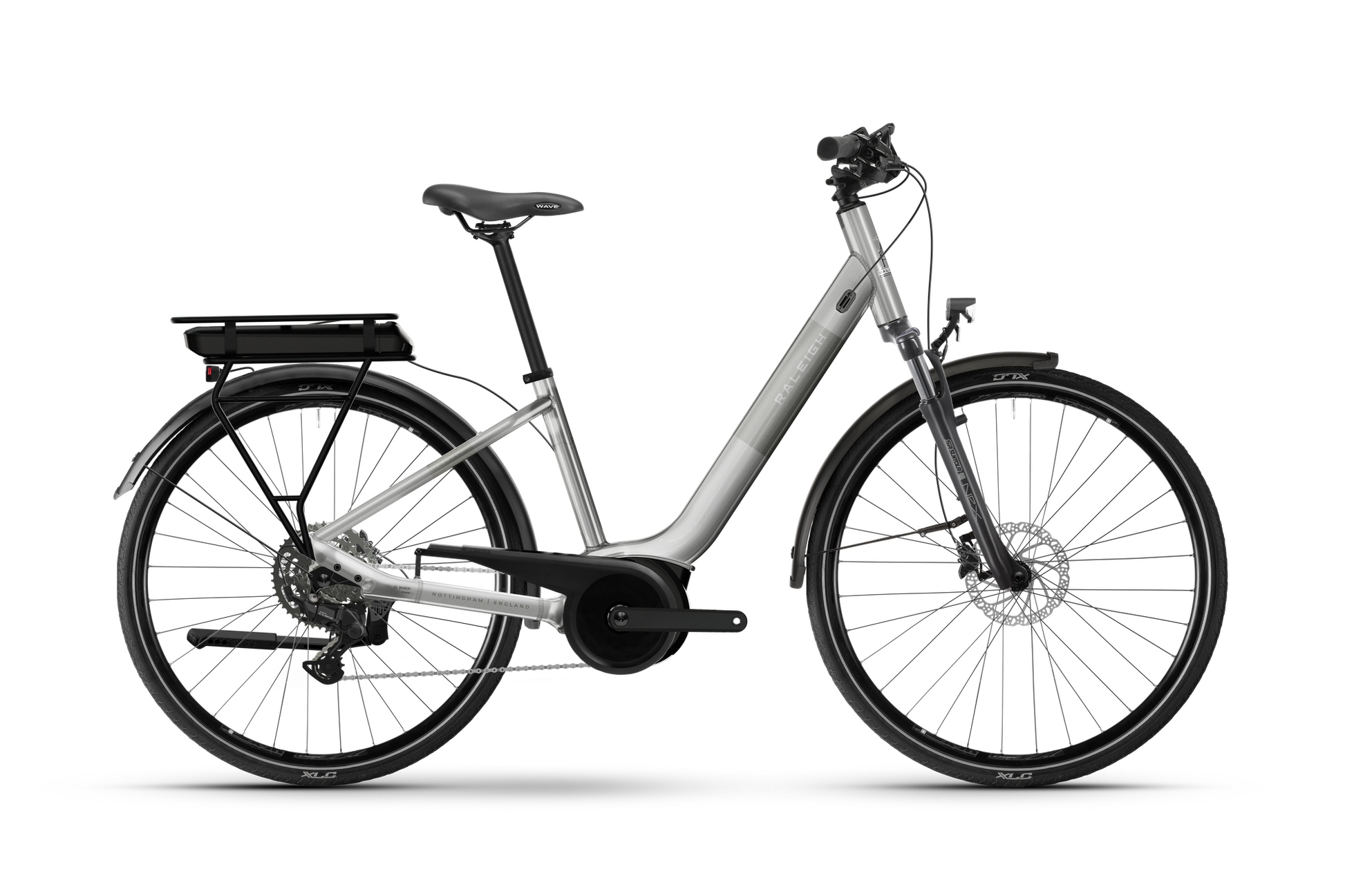

CAPTUS - LOW STEP ELECTRIC BIKE
CAPTUS - LOW STEP ELECTRIC BIKE
Description
Captus gives you the kind of e-bike tech you’d associate with a bigger price tag. It’s powered by a Bosch e-system with a 400Wh battery and Active Line motor, built to handle city commutes, weekend rides, and everything in between. In other words: reliable, proven, and economical.
You get proper kit too - hydraulic disc brakes, Shimano 9-speed gears, front and rear lights, full mudguards, and pannier rack capable of holding 27kg. 700C wheels roll smoothly and efficiently, whether you're casually cruising through traffic or trying to beat the rain home.
The Captus low-step frame comes equipped with a 50mm front suspension fork, adding extra comfort when the road surface isn’t playing nice. It’s a great option if you want a smooth, cushioned ride for everyday commutes or longer weekend trips.
If you want premium performance without the premium price tag, this is it. No gimmicks. Just a well-made e-bike that does what it says on the tin - and then some.
Range Calculator
Use this calculator to better estimate the range you might achieve based on your riding conditions:
(Please check the specification to ensure your select the correct motor and battery. The total travel distance will depend on the capacity of the battery, rider and luggage weight, power mode setting and riding style.)
Important
Please be aware that this bike is regulated in line with existing Electric Power Assisted Cycles regulations. Any modification to the bike will invalidate the guarantee and in particular any modification which increases the power of the motor and/or the top assisted speed of the bike may make the rider liable to prosecution. Excluding statutory obligations Raleigh will not be held responsible for any injuries incurred following any modification to this product.
Key Features
400 Wh Battery
Active Line Motor
Premium Tech
Specifications
e-System
e-System
Battery: Bosch Li-ION
Charger: Bosch Smart Charger Charger 2A 220-240V
Display: Bosch Led LED Remote
Motor: Bosch Active Line
Frame
Frame
Frame: LOW Aluminium Low-Step
Modular Rail System: No
Maximum loadable weight:
Drive
Drive
Cassette: Shimano Cassette CUES CS-LG300-9, HG
Chain: Shimano Chain CUES CN-LG500 9-11s, LINKGLIDE
Crankset: EC37A-F9-BNI Cranks + CR Miranda DM
Derailleur Rear: Shimano Cues CUES RD-U4000-GS 9s, Shadow+
Gear: Shimano Derailleur CUES
Number of gears: 9
Shifter Right: Shimano Triggershift CUES SL-U4000-9R, Rapidfire+
Suspension
Suspension
Front Fork: Suntour SF20 NEX DS MBL, 50 mm
Rear Travel:
Shock:
Travel:
Components
Components
Front Brake: Shimano Hydraulic Disc brake Altus BR-MT200, 2 pistons, resin pad, 160 mm
Rear Brake: Shimano Hydraulic Disc brake Altus BR-MT200, 2 pistons, resin pad, 160 mm
Headlight: Herrmans Via E-bike System CL3, 30 Lux, 6-12V, Nex Bracket
Rear Light: AXA Via E-bike System Juno E-Bike, 6-12V
Brake light: No
Grips: XLC
Handlebar: XLC Flat bar JD-TR25AL, Dia. 31.8 mm, L: 640 mm
Pedal: XLC VPE-527 Alloy w/ Reflector

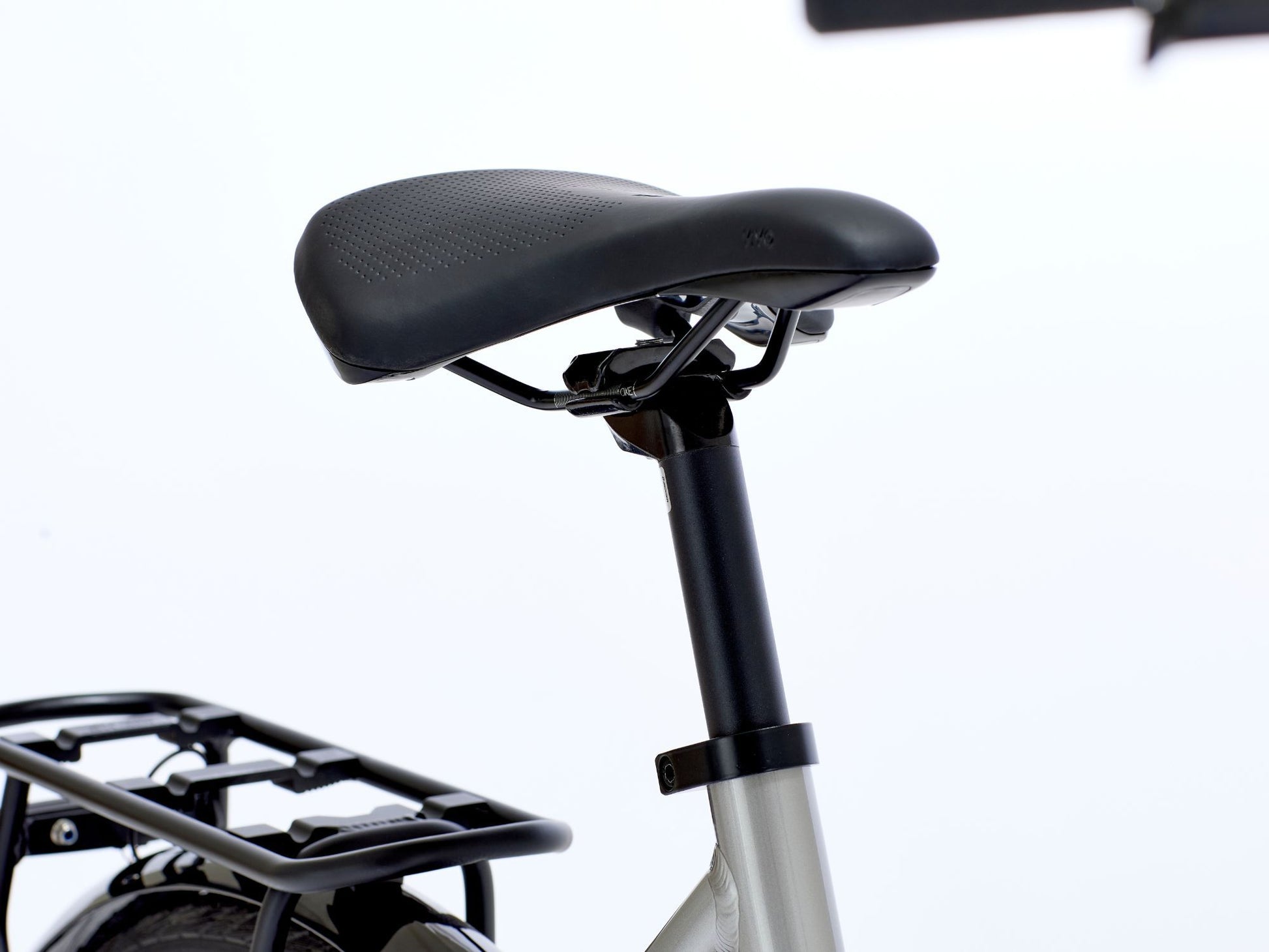

Saddle: Selle Royal Tour Wave 8214 DC
Seatpost: XLC Non Suspension SP-DC1, Dia. 27.2 mm, L: 350 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Ryde ZAC 421 36H 8,5 mm Valve
Tyre: Schwalbe Road Cruiser Plus PunctureGuard 50-622
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
